Question

Hole Note Refinement

  • April 18, 2025
  • 3 replies
  • 652 views

Hi Folks,

Using Creo 7.0.8.0

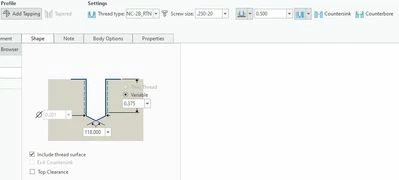

In the 'Shape' sub-tab of the 'hole' modeling feature ribbon, I recall the graphic used to show the tap-drill depth. I don't see this anymore. Nonetheless, is there a way to add drill depth to the note callout properly? This is omitted and only tap-depth is shown. Thank you.





3 replies

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
April 18, 2025

Creo 9.0.9.0 shows what you want for the note, but not graphically.





P
19-Tanzanite
pausob19-Tanzanite
19-Tanzanite
April 20, 2025

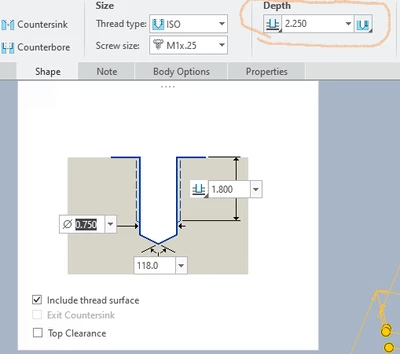

At some point, the GUI changed and now the tap drill depth is specified elsewhere:


It seems the reason your note doesn't show it is because you are using a custom hole table (UNC-2B_RTN ?) that has a callout definitions that do not display the dap drill depth...

A
anursinghCommunity Manager
Community Moderator
April 28, 2025

Hi @wbottis,



I wanted to see if you got the help you needed.

If so, please mark the appropriate reply as the Accepted Solution. It will help other members who may have the same question.
