How can I add an additional leader to a radius dimension in a PTC Creo 3.0 drawing?

7 replies
13660 views
Translate All

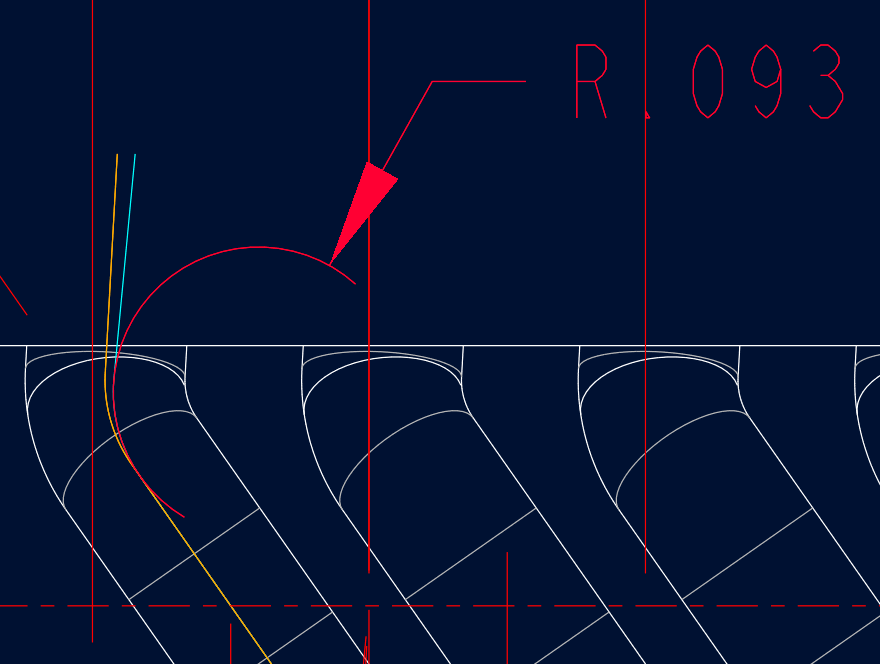

I want to add an additional leader to my drawing on the outside radius dimension to call out the internal radius with it.

How can I add the additional leader?

addl leader.PNG

2D Drawing

K

KevinAnswer

1-Visitor

You can't add an addition leader to a dimension. Standard practice is to call it out using 3X for example. If you you want to have multiple leaders you would use a note.

R

RonSt.Pierre

12-Amethyst

select your leader, RMB create witness line

Translate

S

shamrick

Author

1-Visitor

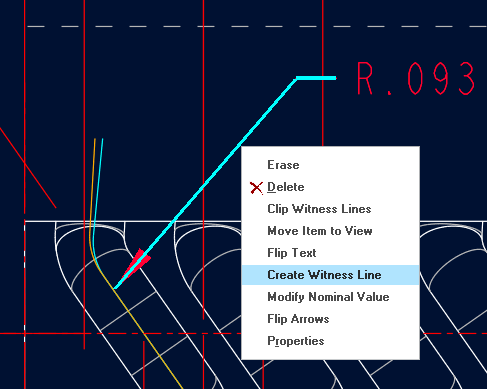

unless I'm selecting the leader wrong, this is what I get with I RMB:

No create Witness line

Translate

R

RonSt.Pierre

12-Amethyst

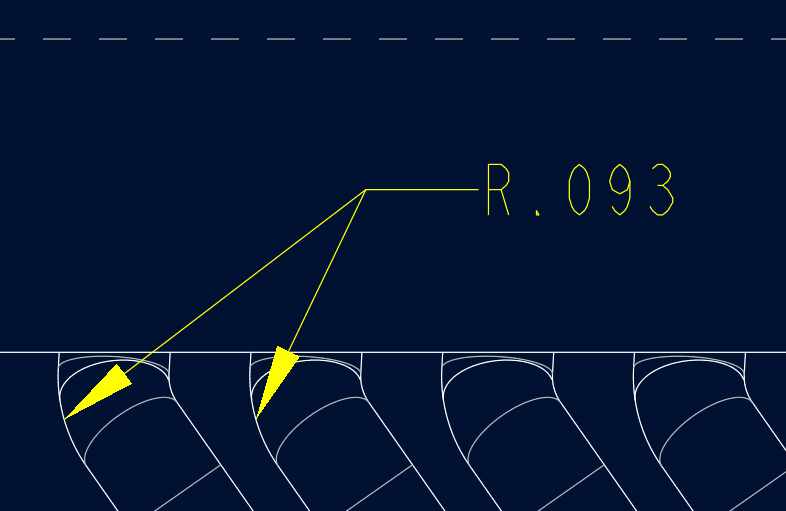

this is what I got

With that being said, you may have to select near the arrow, if a little box/circle appears, drag that around.

it means it was already created but just needs some lovin' to show up.

ron

ps - I am playing on CP2 if that makes a difference

Translate

K

Kevin

Answer

1-Visitor

You can't add an addition leader to a dimension. Standard practice is to call it out using 3X for example. If you you want to have multiple leaders you would use a note.
