how can I "save as .jpg" all the components of my assembly?

  • September 30, 2016
  • 4 replies
  • 5280 views

hallo

for our Services department we need to have an image (jpg or png )of all individual part or sub assembly contained in our machine.(+400 items)

What is the best way to do that ?

Batch? Mapkey with maybe some vb ?

thanks for your help

Veronique


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by TomD.inPDX

I found this CS case about this... and I wonder if by default, Creo has trouble using this.

Those with maintenance can see this:

https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS51630&lang=en&source=snippet

The noteworthy comment in the notice is that space characters in the Creo installation path will cause this function of converting images to fail.

This issue is true all the way through Creo 3.0 and updated as recently as this year.

Obviously, PTC added the spaces in a default install.  Go figure.  4 years now!

4 replies

L
lkogler-21-Visitor
1-Visitor
September 30, 2016

Hello Veronique,

I would do / have done similar with jlink but maybe there are simplier solutions.

first list all components of assembly (excluding scellettons)

open each component

apply matrix eg. for isometric view

raster and save the image

vb might be similar.

Bye

Leo

J
James621-Visitor
1-Visitor
September 30, 2016

hi,

From Creo you can export TIFF files to disk. From there you will propably need some sort of batch converter, unless you can automate an app that can do it, like MS Paint.

Do you have the Creo assembly locally on your hard disk or in a Windchill workspace?

M
MikeCavins14-Alexandrite
14-Alexandrite
September 30, 2016

There are config options, save_bitmap - alllevels & save_bitmap_type - jpeg.

JPGs will be created every time  you save.

T
TomD.inPDX17-PeridotAnswer
17-Peridot
September 30, 2016

I found this CS case about this... and I wonder if by default, Creo has trouble using this.

Those with maintenance can see this:

https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS51630&lang=en&source=snippet

The noteworthy comment in the notice is that space characters in the Creo installation path will cause this function of converting images to fail.

This issue is true all the way through Creo 3.0 and updated as recently as this year.

Obviously, PTC added the spaces in a default install.  Go figure.  4 years now!

slapha
slapha15-Moonstone
15-Moonstone
September 30, 2016

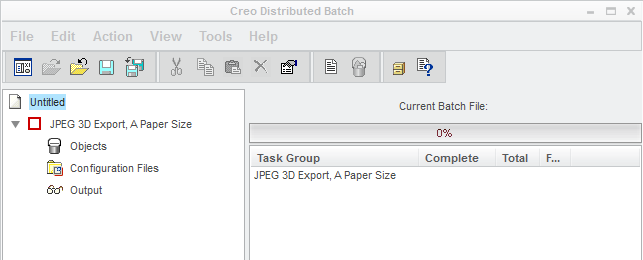

Creo Distributed Batch (was Pro/Batch) is a good option if you have access to it. 2016-09-30_16-10-42.png

Trailmaker 0.3 might be another option depending on how often you have to perform it on an entire structure and how much you want to automate it.
