how do i get black and white line drawing suitable for dimensioned drawings

how do i get black and white line drawing suitable for dimensioned drawings, instead of my actual colour shaded model being shown on the 2D drawing?

21-Topaz I

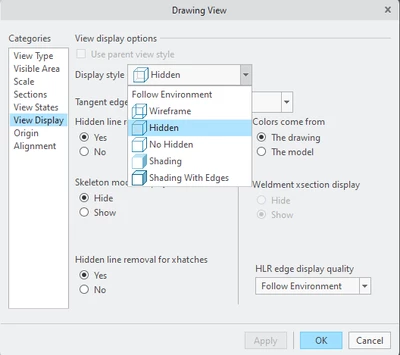

In the drawing view properties, select View Display and select the Display style you want.

There is always more to learn.

Answer

21-Topaz I

In the drawing view properties, select View Display and select the Display style you want.

Translate

There is always more to learn.

14-Alexandrite

If you don't want to have to do this every time, you can also define the default display style you want to use within the drawing setup file (.dtl).

Translate
