How do you flip the axis direction of an explode line?

  • March 17, 2015
  • 1 reply
  • 5989 views

I am adding explode lines to an explode view in Creo but I can't change the direction of the lines when they are pointing in the wrong direction. The flip button is greyed out.

1 reply

D
dcox-21-Visitor
1-Visitor
March 18, 2015

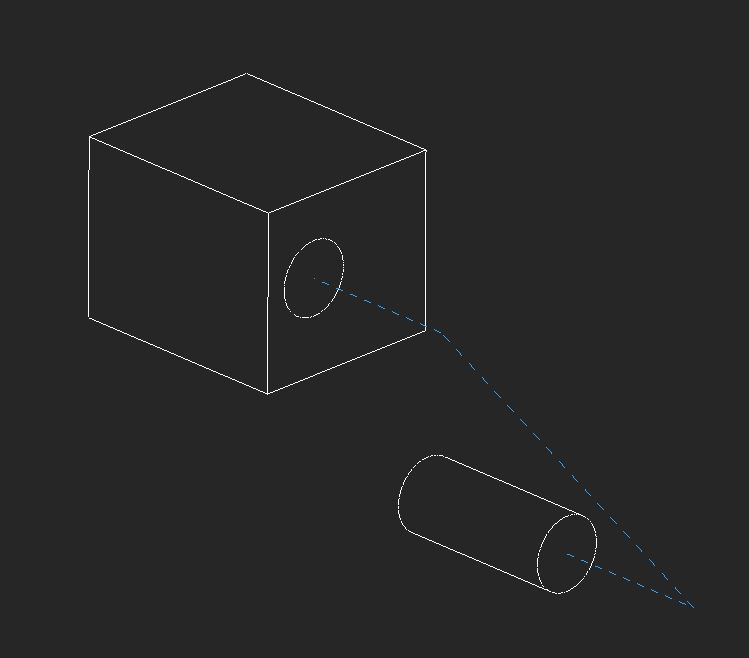

Welcome to the forum. If I understand the question, you are seeing this:

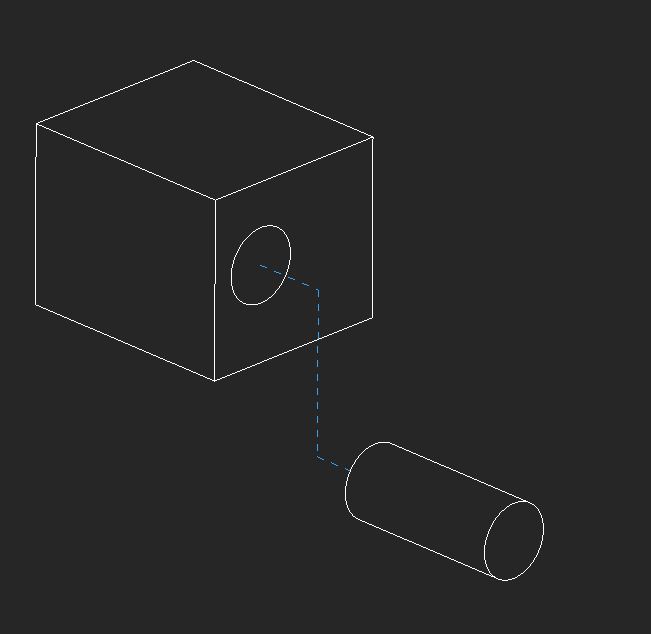

When you want to see this:


to do this, you cannot flip the line, instead you must create a new line. To make sure the explode line comes out on the correct side, you must be careful when picking on the axis. The explode line will come out of whichever end of the axis that you select, so to get the explode line coming out of the left hand side, pick the left hand end of the axis.

I hope this helps,

David

    K
    khallquist1-Visitor
    1-Visitor
    October 4, 2017

    answer does not work, very difficult to get the desired results, again, creo hates humanity



      L
      llie17-Peridot
      17-Peridot
      October 5, 2017

      From PTC



      Editing Explode Lines

      You can edit existing explode lines by selecting the explode line and clicking Edit Explode Line Graphic from the Explode Lines tab in the dashboard. You can also right-click and select Edit Explode Line. You can perform the following edit operations on an explode line:

      • Edit the explode line length — You can extend or shorten the ends of an explode line by dragging the handle at the desired end.
      • Add Jogs — Select the explode line location where you want to create the jog, right-click, and select Add Jog. You can then drag the jog to its desired location. You can delete the jog by right-clicking its handle and selecting Remove Jog.

      Modifying Explode Line Style

      You can modify the style of existing explode lines by selecting the explode line and either clicking Edit Line Styles from the Explode Lines tab in the dashboard, or by right-clicking in the graphics window and selecting Modify Line Style. You can modify the line style to be Hidden, Geometry, Leader, Cut Plane, Phantom, or centerline. You can also modify the Line Font and Color. You can always restore the default line style by selecting the explode line and clicking Default Line Style from the Explode Lines tab in the dashboard.
