Question

How to add "Annotation sets" to CreoView file

  • October 31, 2012
  • 4 replies
  • 3168 views

Good morning,


I am wondering if anyone knows how to export or create "annotation sets" in a pvz file.


I know that simpreps and/or combined states can be included in to CreoView (*.pvz) files bycorrect settings in the rcp recipefile. These are exported as "viewables" to the CreoView file and can be selected under the tab "Viewables".

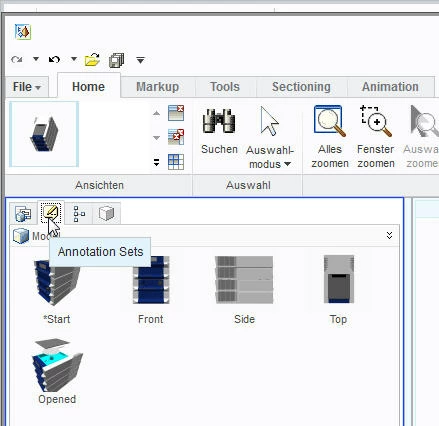

I have a PTC demo pvz file which has some kind of "Previews" to states. These can be selected under the tab "Annotation Sets" in Creo View - see attached screenshots.


>> DOES ANYONE KNOW HOW TO CREATE THESE ANNOTATION SETS??? In Creo Parametric, Pro/E or CreoView Lite/MCAD ???


Kind Regards and Greetings from Switzerland,


Andreas


__________________________________


Andreas Hellmann
MCAD Services Pro/E & Pro/E customization
Rudolf-Diesel-Str. 6
D-65439 Floersheim / Germany


phone: +49 6145 598296
mail: -

4 replies

R
RandyJones20-Turquoise
20-Turquoise
October 31, 2012
On 10/31/12 04:39, Andreas Hellmann wrote:
>
> Good morning,
>
> I am wondering if anyone knows how to export or create "annotation sets" in a pvz file.
>
> I know that simpreps and/or combined states can be included in to CreoView (*.pvz) files
> by correct settings in the rcp recipe file. These are exported as "viewables" to the CreoView file
> and can be selected under the tab "Viewables".
>
> I have a PTC demo pvz file which has some kind of "Previews" to states. These can be selected
> under the tab "Annotation Sets" in Creo View - see attached screenshots.
>
> >> DOES ANYONE KNOW HOW TO CREATE THESE ANNOTATION SETS??? In Creo Parametric, Pro/E or CreoView
> Lite/MCAD ???
>

In CreoView do this:

1. select the markup tab
2. markup as needed
3. File | Save Annotation Set

> Kind Regards and Greetings from Switzerland,
>
> Andreas
>
> __________________________________
>
> Andreas Hellmann
> MCAD Services Pro/E & Pro/E customization
> Rudolf-Diesel-Str. 6
> D-65439 Floersheim / Germany
>
> phone: +49 6145 598296
> mail: - <">mailto:->
>
>
> ----------


--
------------------------------------------------------------------------
Randy Jones
Systems Administrator
Great Plains Mfg., Inc.
1525 E North St
PO Box 5060
Salina, KS USA 67401
email: -
Phone: 785-823-3276
   Fax: 785-667-2695
------------------------------------------------------------------------

S
SteveVinyard1-Visitor
1-Visitor
October 31, 2012
These annotation sets are pretty handy. They can also be attached to an ECR/ECN to further define the change

[cid:image001.gif@01CDB74E.68E0D6B0]

Steve Vinyard
Application Engineer
K
krichardson1-Visitor
1-Visitor
November 7, 2012

Hi Steve,


How do you attach the annotations to a change order? PDMLink 9.1 M060


Thanks! Kathy

S
SteveVinyard1-Visitor
1-Visitor
November 7, 2012
If you create an annotation on a CAD Document you can then add it on the ECR via the Annotations options. I believe this options also exists on the ECN as well. The help menu should have information on it as well

[cid:image001.gif@01CDBCD0.765BA770]

Steve Vinyard
Application Engineer
V
VeqTor1-Visitor
1-Visitor
May 14, 2020

Hi all,



Our team is working extensively with Annotation Sets in Creo View.



We are wondering whether Annotation Sets can be created in Creo Parametric as well -- and if yes, can somebody pls. provide a link to how this is done?



Thank you
