How to add number of used hardware (screws) in family table ?

  • August 21, 2020
  • 9 replies
  • 3539 views

Hello All-

I am working on the assembly family table drawing. Each instance uses the different numbers of the hardware. Is there any way creo can count the number of hardware on each assembly and can add that information on the family table column so I can show that in my drawing? I really appreciate it if someone helps me with this or any suggestion.






Thank you so much.

    Best answer by Patriot_1776

    I think everyone pointing to the BOM table repeat region are missing the fact that he wants to see that info in the family table editor itself.  Offhand, I can't think of a way to do that.

    9 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 24, 2020
    @pobsd wrote:

    Hello All-

    I am working on the assembly family table drawing. Each instance uses the different numbers of the hardware. Is there any way creo can count the number of hardware on each assembly and can add that information on the family table column so I can show that in my drawing? I really appreciate it if someone helps me with this or any suggestion.






    Thank you so much.

    Hi,

    please can you upload example data ?

    P
    pobsd13-AquamarineAuthor
    13-Aquamarine
    August 25, 2020

    Martin Thank you for your response.

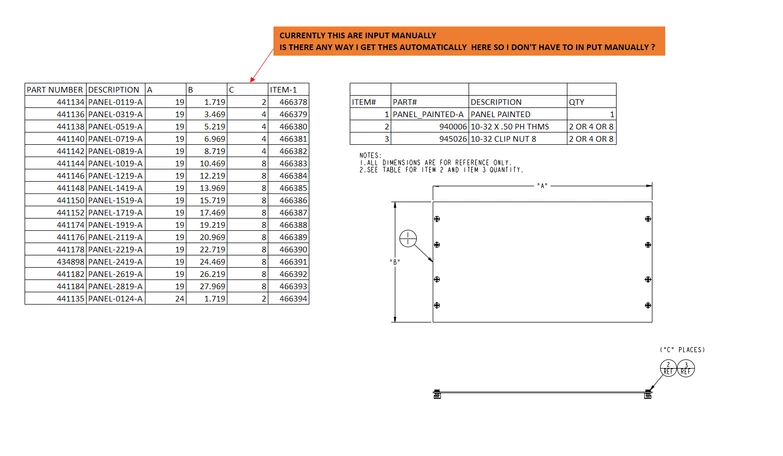

    Please see the drawing below.






    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 25, 2020
    @pobsd wrote:

    Martin Thank you for your response.

    Please see the drawing below.






    Hi,

    I am sorry I have to repeat my request ... please can you upload example data ? I mean Creo files, not picture. I think you understand that I can't guess how your assembly is built.

    D
    DavidBigelow18-Opal
    18-Opal
    August 24, 2020

    I think this is fundamentally why Repeat Regions exist... for Creo Drawing Tables...  to report the content and qty of things.



    Assuming you are creating a drawing of a family table instance of an assembly, you should be able to add the required table and repeat region to your drawing template and it should work automagically when done.



    Dave

    P
    pobsd13-AquamarineAuthor
    13-Aquamarine
    August 25, 2020

    Hi David.

    Thank you for your response. I didn't find that option. Could you please share with me if you have something for this?

    Thank you

    kdirth
    kdirth21-Topaz I
    21-Topaz I
    August 24, 2020

    Are you looking to have one BOM table with a QTY column for each instance of the family table?



    I am not sure a BOM table can reference multiple assemblies in this way.  Someone else may have more info if this is your goal.

    There is always more to learn.
    P
    pobsd13-AquamarineAuthor
    13-Aquamarine
    August 25, 2020

    Hi Kdrith-

    Thanks for your reply. yes, I am looking for QTY column for each instance for the family table.

    D
    DavidBigelow18-Opal
    18-Opal
    August 25, 2020

    The following links I think will point you in the right direction... depending on what your goal is for the final table and content.



    http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/detail/Understanding_Repeat_Regions.html

    http://support.ptc.com/help/creo/creo_pma/usascii/index.html#page/detail%2FTo_Show_Family_Tables_with_Repeat_Regions.html%23



    Dave

    Patriot_1776
    Patriot_177622-Sapphire IIAnswer
    22-Sapphire II
    August 25, 2020

    I think everyone pointing to the BOM table repeat region are missing the fact that he wants to see that info in the family table editor itself.  Offhand, I can't think of a way to do that.
