How to Add Tapping Sizes on Creo Drawings

Hi,

I require to state an M16 tapping size for a hole on my Creo drawing

Any ideas how to do this as I can only get up to M10 within the tolerance tables from model properties

Any help would be highly appreciated

23-Emerald III

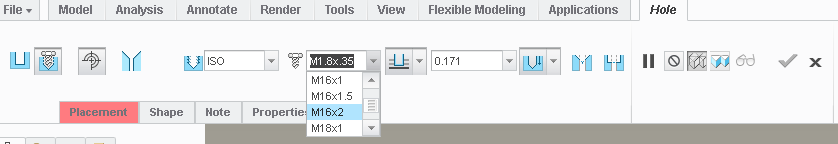

Are you using the hole feature?

18-Opal

Steven,

If you are creating a Standard Hole feature, as indicated by Stephen's image, you will be able to show the Standard Hole Note in the drawing.

Thanks,

Amit
