How to add tolerance on drawing (Creo 4.0)

Hello Guys,



During the using Creo 4.0, I have some problem when I try to add tolerance after modifying dimension.

Tolerance is no appeared after I modify dimension myself. I want to add +0/-0.25.



How can I solve this..? Please support me.

Thank you in advance.

StephenW
StephenWAnswer
23-Emerald III
November 22, 2019

If you are just overwriting the dimension, then just add the tolerance as text using superscript/subscript.

Copy and paste this line in to the dimension text

{0:@O}2.5 {2:@++0@#}{3:@--0.2@#}



Why are you overwriting the dimension? In general, that is VERY poor practice.

View in thread

4 replies

BenLoosli23-Emerald III
23-Emerald III
November 21, 2019

You need to modify your *.dtl file to allow tolerances.





Translate
StephenW
StephenW23-Emerald III
23-Emerald III
November 21, 2019

This video may help too.

https://community.ptc.com/t5/Detailing-MBD-MBE/Creo-tutorial-How-to-show-Tolerance-dimensions/m-p/582570

Translate
dkim-81-VisitorAuthor
1-Visitor
November 21, 2019

Thank you for your feedback.

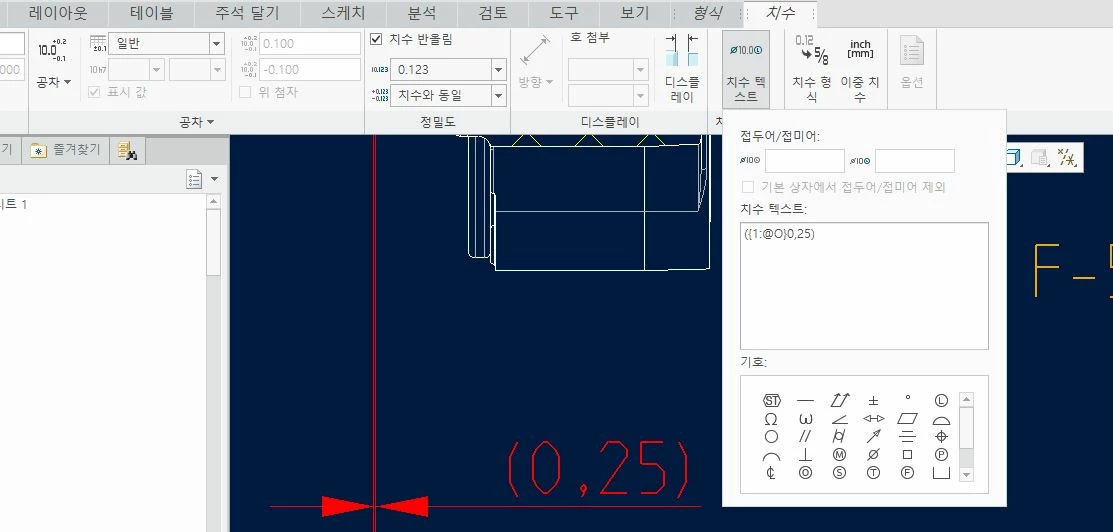

My problem is that I can see tolerance when I put it on real dimension. (ex. 1.3+0/-0.2)

But, I can't see tolerance after I change dimension personally. (ex. 1.3 -> 2.5 using the '@O 2.5')



http://support.ptc.com/help/creo/creo_pma/korean/index.html#page/detail%2FTo_Overwrite_Dim_Value_Display_with_a_Text_String.html



So, I want to put in tolerance even if I change dimension.

Translate
StephenW
StephenW23-Emerald IIIAnswer
23-Emerald III
November 22, 2019

If you are just overwriting the dimension, then just add the tolerance as text using superscript/subscript.

Copy and paste this line in to the dimension text

{0:@O}2.5 {2:@++0@#}{3:@--0.2@#}



Why are you overwriting the dimension? In general, that is VERY poor practice.

Translate
