How to apply colours to .pvz file in creo illustrate

Hi,

My issue was I have a .pvz file which has no colour and I wanted to apply colour to it. It's a big assembly file and I try to export it to .step file and try to apply the appearance to it but the creo is crashing while opening that assembly file. So i need help that how can I apply colours to .pvz file in creo illustrate

7 replies

Bogdan_M13-Aquamarine
13-Aquamarine
Jan 23, 2023 7:18 PM UTC

Hello,

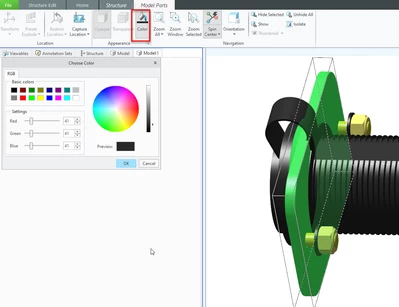

1. Creo Illustrate:

https://support.ptc.com/help/creo/illustrate/r9.0/en/index.html#page/creo_illustrate/visualization/creo_illustrate/To_Modify_the_Display_of_Parts_in_Edit_Structure_Mode.html



2. You can export the step file with colors from CREO parametric.

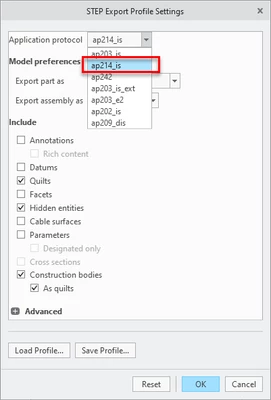

Use ap214_is protocol to export with colors:






3. use Creo view


Translate
RP_1038445111-GarnetAuthor
11-Garnet
Jan 25, 2023 4:37 AM UTC

HI @Bogdan_M thank you for your solution but I have a .pvz file which I imported into creo parametric and in the model tree it is showing only one body so I'm not able to apply appearance to different parts of the model please help me .

Translate
Bogdan_M13-Aquamarine
13-Aquamarine
Jan 25, 2023 1:17 PM UTC

May I ask if you can share the file? If not, I'll try to replicate at my end.
