How to arrive Centre of gravity point in overall vehicle (Tractor/Car) layout

How to arrive Centre of gravity point in overall vehicle (Tractor/Car) layout.

Available data are

1. Wheel base/Wheel Track

2. Tyre Details

3. Over all vehicle layout cad assembly/parts (In virtual only. Not physical)

4. Overall weight of the vehicle



Front and Rear reactions are not available.

I am using CREO-4 parametric.



Kindly suggest to find the COG point in virtual layout assembly.

us_01Answer
10-Marble
Mar 20, 2024 3:40 PM UTC

It is correct. But over all assembly containing 1000 parts is difficult to find. It shows few errors.

Anyway any theoretical calculation method is available?

4 replies

StephenW
23-Emerald III
Jan 19, 2024 11:53 AM UTC

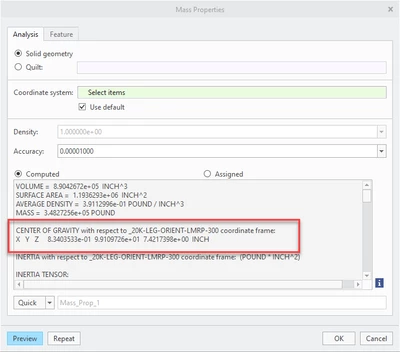

Go to the Analysis tab, then mass properties, then click the preview button.
