How to assign a datum to GTol in Creo 6

Forum|Forum|6 years ago
August 31, 2019
2 replies
4295 views

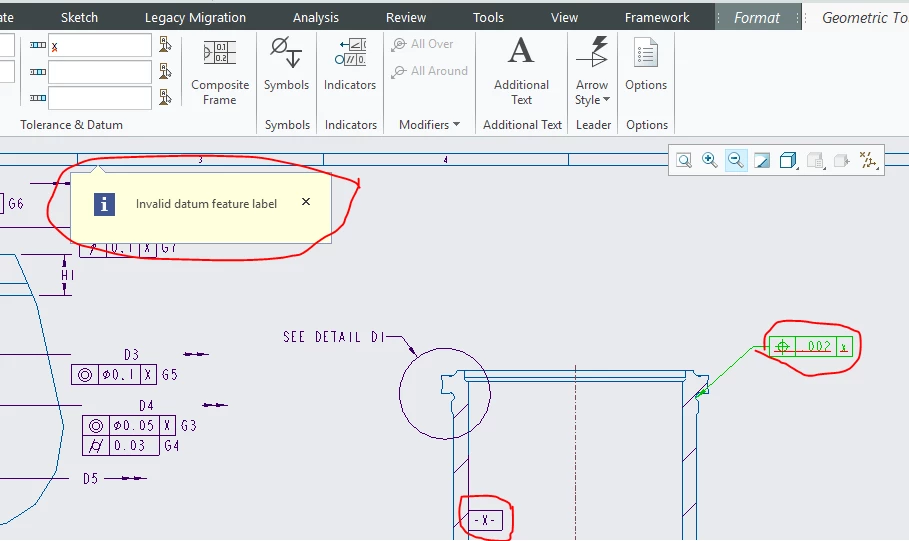

1. I have already worked with Creo 2 and for GTol definition in the drawing what I did previously was changing the datum display type in the model (from the property of the datum and change display type). Then in drawing it was automatically displayed in datum selection tab (datum Refs) of GTol tool, but in Creo6, when I do the same procedure, it is not possible to select the datum feature and when the label of the datum is typed an error appears as shown in the attached figure (Invalid datum feature label)

Could you help, please?

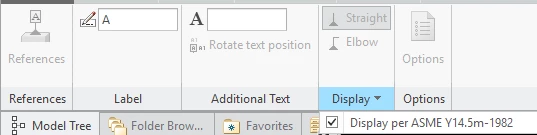

2. Another question is about changing the display type of the datum in the drawing to the following format, could anybody propose a solution?

Thanks

2D Drawing

Mahesh_Sharma

22-Sapphire I

@MohaSharifi

There are some major changes in functionality about MBD and all in Creo 4.0 onward..

Detailed information is available in article CS271565

M

MohaSharifi

Author

10-Marble

Is it possible to access this article without having maintenance?

Chris3

21-Topaz I

I would suggest reviewing this video. It is one of he better ones out there:

https://www.youtube.com/watch?v=poJLJy3CcLg

M

MohaSharifi

Author

10-Marble

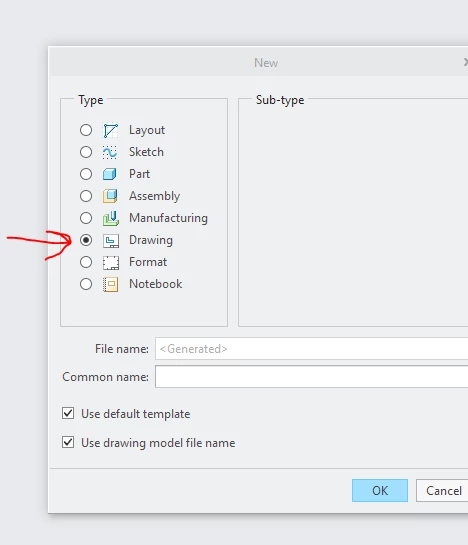

Thanks for introducing a useful video. If I want to generate the drawing of a part using drawing environment (shown in the first figure), should I define the datum in the drawing tree or I could bring it from Model Tree?

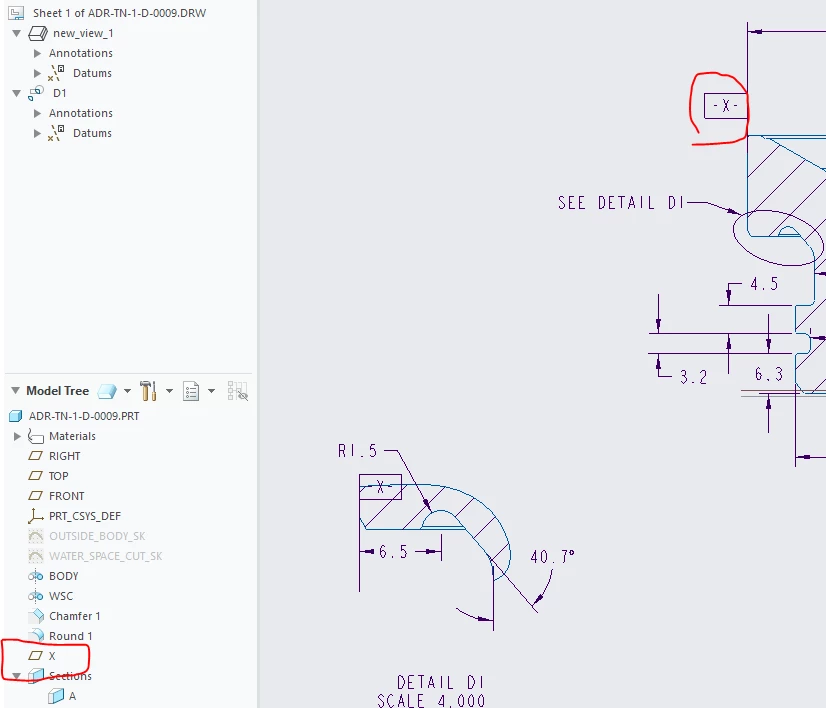

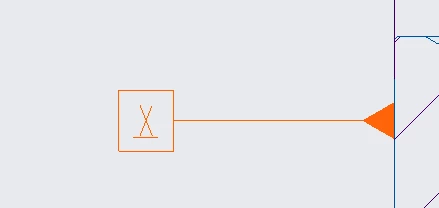

When a plane converted to a datum in the model tree then it appears stuck to the surface without an elbow in the drawing (second figure), is it possible to add elbow to the datum (third figure)?
