How to block my skech in my motion skeleton

  • November 7, 2017
  • 2 replies
  • 2891 views

hello

I am using a motion skeleton to create a symetric movement  for a rail

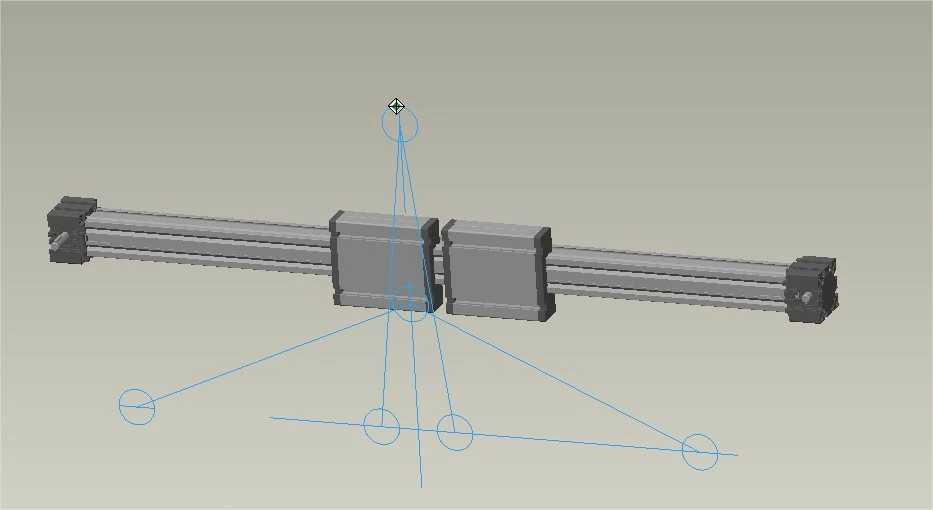

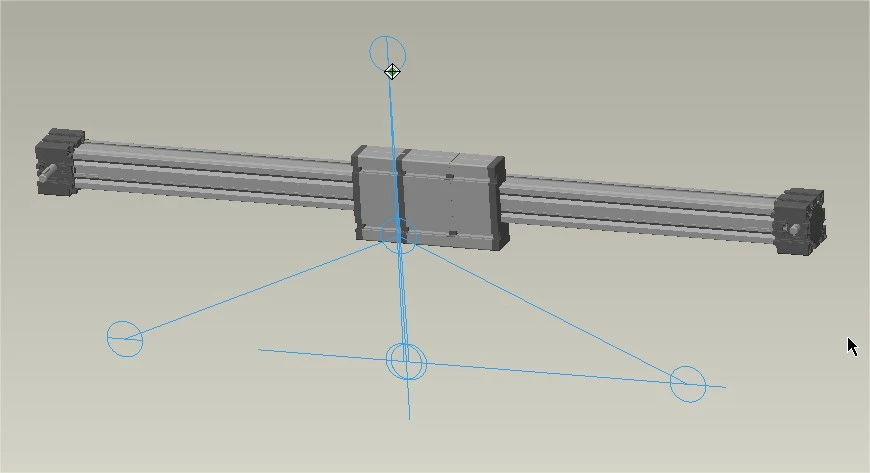

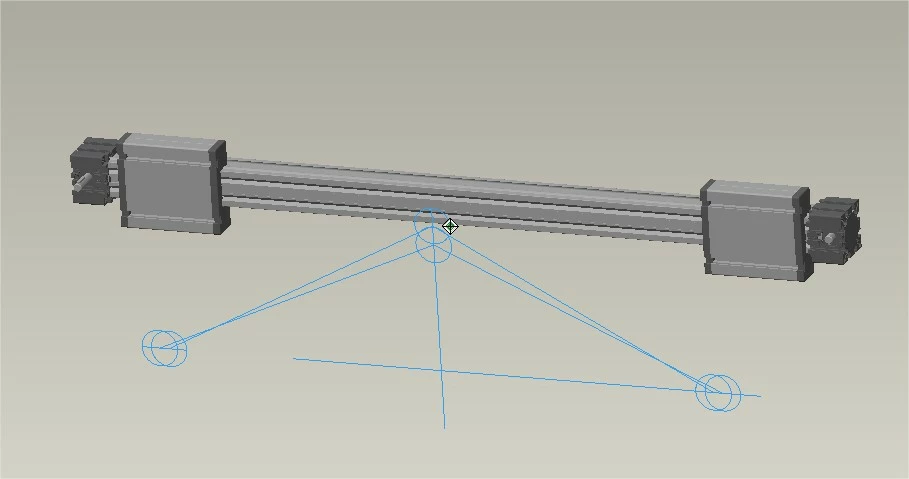

see attached images.

like this, moving one part move also the other one.

but I can 't find the way to "block"or control the amplitude, to have some limits mini, maxi.

I want to be sure to not have my parts touching.

please help,

Best answer by LndoVnBtchmrk

I have a couple ideas you could try.



1) Sketch Relation Method

Try using the BOUND() function in a relation to control the min and max values for a dimension.

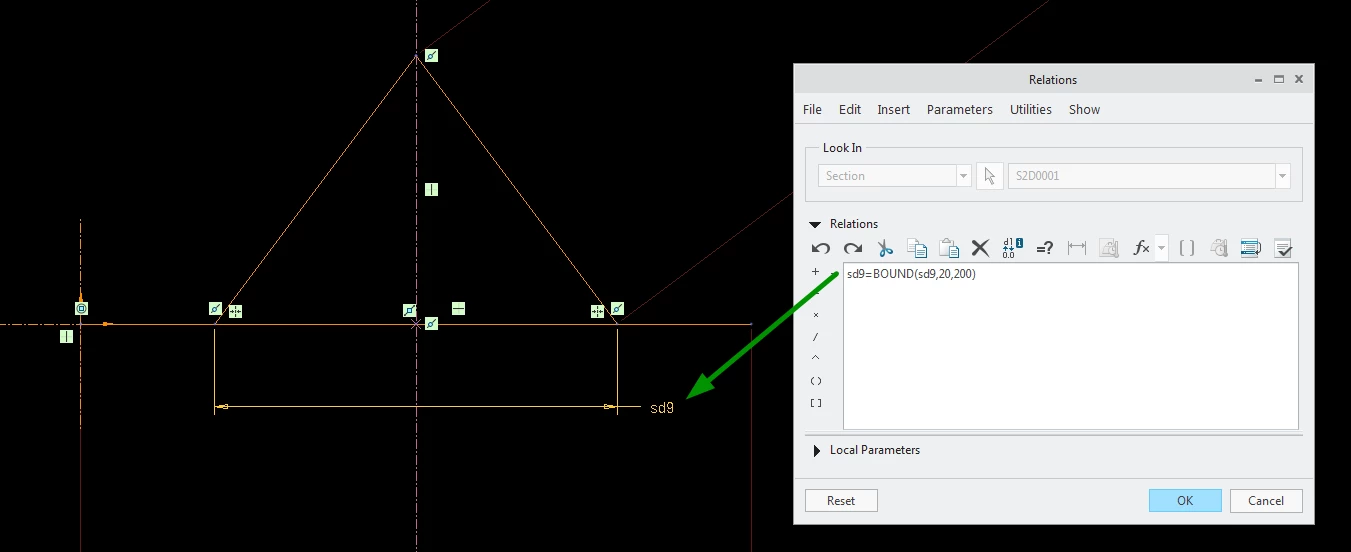

In my screen shot (snap82.png) I created a dimension between the two legs (sd9).  Then I created the relation sd9=BOUND(sd9, 20, 200) where 20 in the min distance and 200 is an arbitrarily large max distance.  I can still drag the legs, but they stop at the min specified seperation (20 in my example).



2)  Mechanism Constraint Method

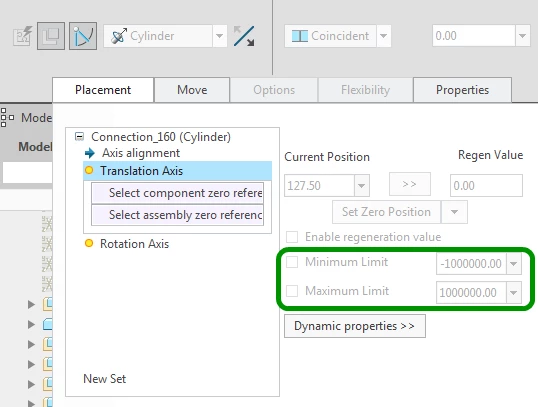

If you built your model with mechanism constraints you could accomplish the same thing by specifying a min and max value in a mechanism connection.  For example, the cylinder connection allows you to specify a range the assembled part can slide along the translation axis (snap84.png).  Same functionality with the Slider connection.

2 replies

L
LndoVnBtchmrk12-AmethystAnswer
12-Amethyst
November 7, 2017

I have a couple ideas you could try.



1) Sketch Relation Method

Try using the BOUND() function in a relation to control the min and max values for a dimension.

In my screen shot (snap82.png) I created a dimension between the two legs (sd9).  Then I created the relation sd9=BOUND(sd9, 20, 200) where 20 in the min distance and 200 is an arbitrarily large max distance.  I can still drag the legs, but they stop at the min specified seperation (20 in my example).



2)  Mechanism Constraint Method

If you built your model with mechanism constraints you could accomplish the same thing by specifying a min and max value in a mechanism connection.  For example, the cylinder connection allows you to specify a range the assembled part can slide along the translation axis (snap84.png).  Same functionality with the Slider connection.

V
Vermont_9514-AlexandriteAuthor
14-Alexandrite
December 1, 2017

hello

the relations in the sketch didn't worked, but the solution was in de Mechanism Constraint Method

I found thanks to you where to set this dimention in my motion skeleton



thanks



Veronique
