How to change Bend order annotation?

I am using Creo Parametric Release 8.0 and Datecode8.0.5.0

I would like to change the bend_order table note information in the drawing. Is it possible?
tbraxton
tbraxtonAnswer
22-Sapphire II
Oct 31, 2024 1:07 PM UTC

One possible quick workaround would be to edit the .bot table. If you are able to open the <partname>.bot file in a text editor, then you can edit it to fit your requirements. You can save this in a .txt file and then import the note from file to use in a model annotation or drawing note.

View in thread

4 replies

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Oct 31, 2024 12:01 PM UTC

A bend order table is constructed by fully unbending a part and recording the bend back process. Have you attempted to re-record the bend back order? If you did this, are you finding that the annotation is not updating to the newly recorded bend order?



About Bend Order Tables

Translate
Victor_Brumatto9-GraniteAuthor
9-Granite
Oct 31, 2024 12:36 PM UTC

Hi Braxton,

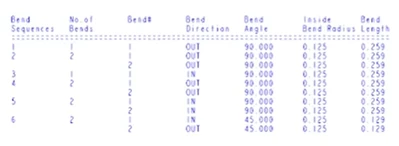

I already created the bend_order feature. I would like the drawing annotation to show the following information: bend sequence, bend ID, bend angle, bend direction. I would like the other information not to appear. The system default does not suit me.






Translate
tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
Oct 31, 2024 1:07 PM UTC

One possible quick workaround would be to edit the .bot table. If you are able to open the <partname>.bot file in a text editor, then you can edit it to fit your requirements. You can save this in a .txt file and then import the note from file to use in a model annotation or drawing note.
