HOW TO CHANGE SCALE REPRESENTATION IN DWG

  • March 14, 2017
  • 3 replies
  • 4340 views

When I set scale of view as 1/3 for example, in representation it shows 133/400. How do I make sure that whatever format i enter the scale; the same is represented?

3 replies

B
BenLoosli23-Emerald III
23-Emerald III
March 14, 2017

In your PDF creation settings, do you have Stroke All Fonts set in the export dialog?

M
MartinHanak24-Ruby III
24-Ruby III
March 14, 2017

Ben,

they are saving PVZ format files, not PDF.

MH

B
BenLoosli23-Emerald III
23-Emerald III
March 14, 2017

Isn't the PVZ format a combination of PDF, some metadata and compressed? The drawing itself is still a 'PDF' formatted file.

M
MartinHanak24-Ruby III
24-Ruby III
March 14, 2017

Hi,

can you upload some test data ?  Use How to Attach a File to a Discussion Reply procedure.

MH

B
BrianToussaint19-Tanzanite
19-Tanzanite
March 14, 2017

Wonder if it is part of this issue and is fixed in M110?  https://support.ptc.com/appserver/cs/view/solution.jsp?n=CS241113

L
llie17-PeridotAuthor
17-Peridot
March 14, 2017

All,

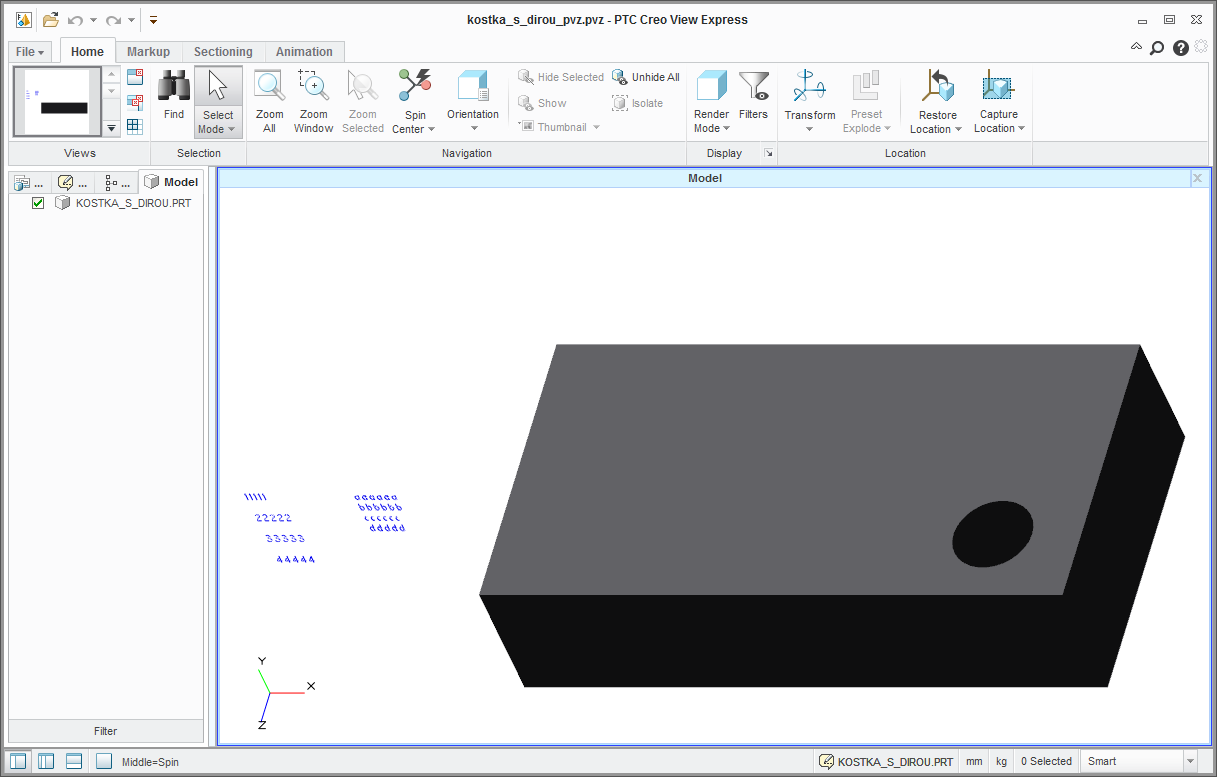

The image is from an MBD model doing a File, Save AS, .pvz in Creo Parametric 3.0 M070.

We get the same results from the CAD Worker when we publish during check-in of the file to Windchill.

M
MartinHanak24-Ruby III
24-Ruby III
March 15, 2017

Hi,

I tested CR3 M100, CR3 M120, Creo View Express 3.1 F000.

Left annotation was just created in Creo (not edited).

Right annotation was created and then edited (empty lines added by Creo were removed).

I think the problem is related to CS241113 mentioned by Brian Toussaint

Please open Case at PTC Support and report the problem.
