HOW TO COMPLETELY REMOVE ATB FEATURES IN A CREO PART FILE

  • October 22, 2019
  • 3 replies
  • 3121 views

HI,

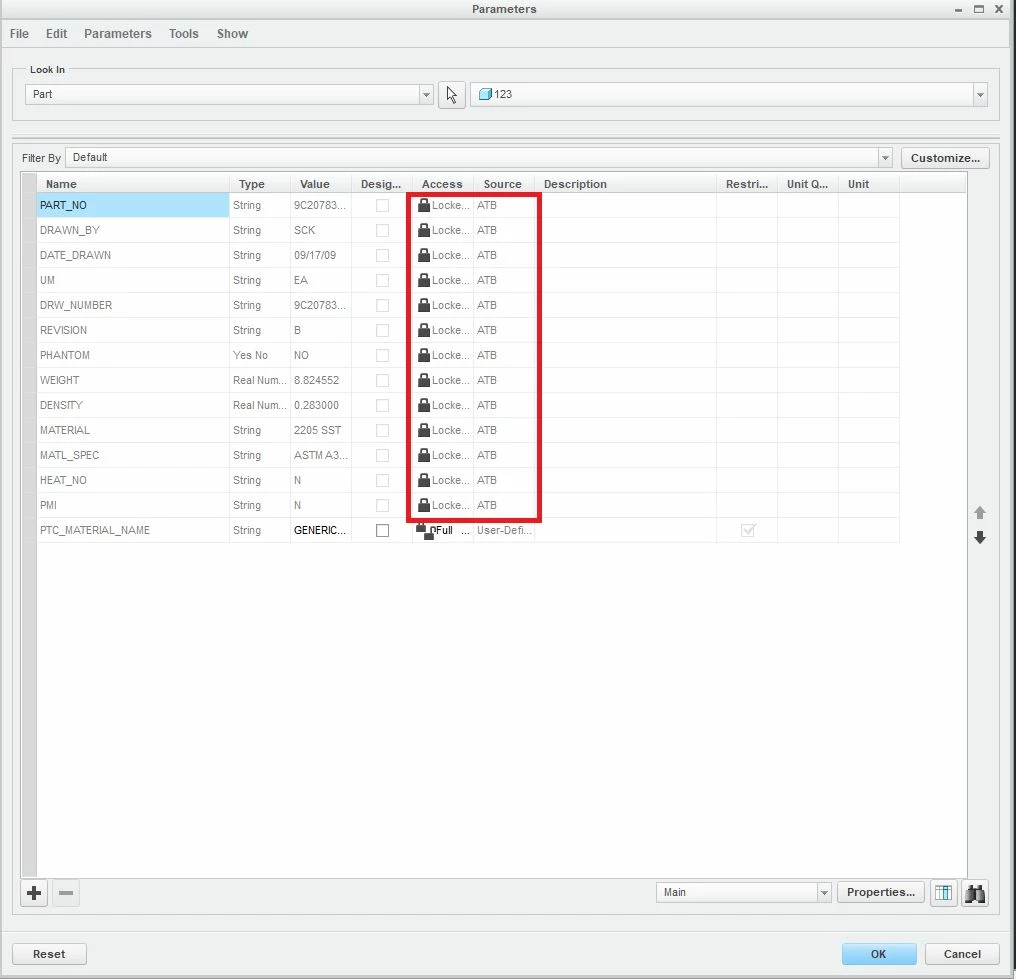

I have a Creo part file which has certain parameters locked by ATB source.

I would like to delete these parameters but it doesn't allow me to delete them.



Could someone suggest a way to delete these parameters please?



Thanks in advance!

Best answer by kdirth

Don't know much about ATB, however from the online help center:

To Break the Associativity Between a TIM or ATB-enabled Feature and Reference Model
1. Select a Translated Image Model (TIM) or an Associative Topology Bus (ATB)-enabled feature.
You can only break the link of a TIM component with the main assembly. You cannot break the links of the subassembly TIM components with the main assembly.
2. Click Model > Operations > ATB > Make Independent or right-click and click Associative Topology Bus > Make Independent. A warning appears in the Creo Parametric message window stating that breaking the ATB link is permanent and cannot be established if it is broken.


It is a permanent and irreversible action and you cannot re-establish the associative link.
3. Click OK in the message window. The imported model or feature is
◦ Independent of its original reference model and is owned by Creo Parametric. It is a standard part, assembly, or feature.
◦ Converted to a standard Creo Parametric model or import feature.

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
October 23, 2019

Hi,

please ask PTC Support.

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
October 23, 2019

Don't know much about ATB, however from the online help center:

To Break the Associativity Between a TIM or ATB-enabled Feature and Reference Model
1. Select a Translated Image Model (TIM) or an Associative Topology Bus (ATB)-enabled feature.
You can only break the link of a TIM component with the main assembly. You cannot break the links of the subassembly TIM components with the main assembly.
2. Click Model > Operations > ATB > Make Independent or right-click and click Associative Topology Bus > Make Independent. A warning appears in the Creo Parametric message window stating that breaking the ATB link is permanent and cannot be established if it is broken.


It is a permanent and irreversible action and you cannot re-establish the associative link.
3. Click OK in the message window. The imported model or feature is
◦ Independent of its original reference model and is owned by Creo Parametric. It is a standard part, assembly, or feature.
◦ Converted to a standard Creo Parametric model or import feature.
There is always more to learn.
    D
    Deepakjohsh13-AquamarineAuthor
    13-Aquamarine
    October 31, 2019

    Thanks a ton!! 🙂
