How to connect the two surfaces smoothly

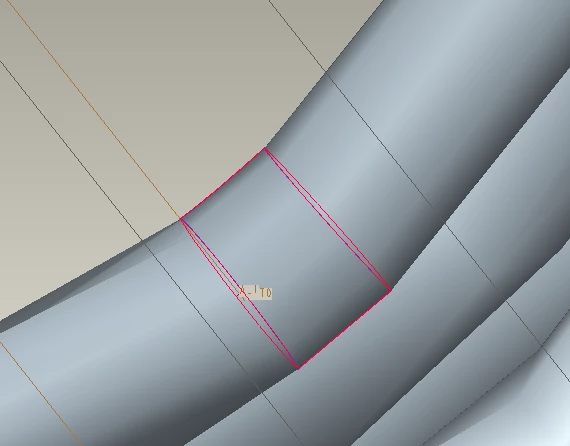

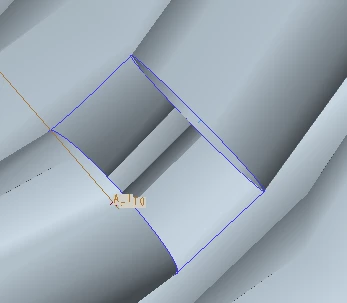

I use the style command to draw two curves(as picture 1 shows), and then use the boundary blend command to generate the surfaces, but when finish this, I can't complete the thicken command, and how two the generated surface to connect smoothly with the two neighbouring surfaces.I use wildfire 4.0.

Can someone help me?Thanks in advance.

3 replies

TomD.inPDX17-Peridot
17-Peridot
June 11, 2013

The thicken command is not generally dependent on tangency. There are any number of reasons thicken fails.

With the boundary blend, you can control the tangency. In this case, making the two ends Normal should suffice.

Translate
ptc-51102451-VisitorAuthor
1-Visitor
June 11, 2013

Normal?What do you mean?I want to make the connecting boundary of the surfaces as smoothly as possible.

Translate
TomD.inPDX17-Peridot
17-Peridot
June 11, 2013

Yes, and if the end of the "tube" is "normal" to the plane of the circle, then you want to continue the surface "normal" to the circle. You could try to see if the boundary blend will go tangent to the previous surface.

You have to think about what I am saying here... tangent and normal are have a really close relationship when put in proper context.
