How to control sketch length to a nominal?

  • October 14, 2013
  • 17 replies
  • 4926 views

I want to draw a sketch that I will use for a sweep that I want to constrain to a nominal number (probably 41 or 42"). The sketch will be a variety of lines and arcs (tangent to the lines). The actual nominal number is not important (can be anything). And the variable pieces mostly are not very important either, just fitting it in the space I have is the only real constraint.

What is a good way to do this?

thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by Patriot_1776

I'm confused......do you want the overall LENGTH of the trajectory to be 41 or 42", regardless of the make-up (arcs/lines, etc.) of the trajectory? If so, you'll want to use the perimeter option in sketcher.

17 replies

TomD.inPDX17-Peridot
17-Peridot
October 14, 2013

I can't picture this, Matt. I suspect you have two answers; relations built from the sketch (perimeter dimension relation?) or a trajpar relation in the swept sketch. Trajpar is a value from 0-1 along the trajectory (open sketch) or 0-360 (closed sketch) in relation to the origin sketch.

Inoram14-AlexandriteAuthor
14-Alexandrite
October 14, 2013

I was thinking relations. I'll have to think about it some more, it may or may not be worth the time to even do it that way though. With Trajpar I will have to dig out my trajpar notes and see if that would apply. I use trajpar so rarely I always have to re-read how to use it.

thanks for the input.

TomD.inPDX17-Peridot
17-Peridot
October 14, 2013

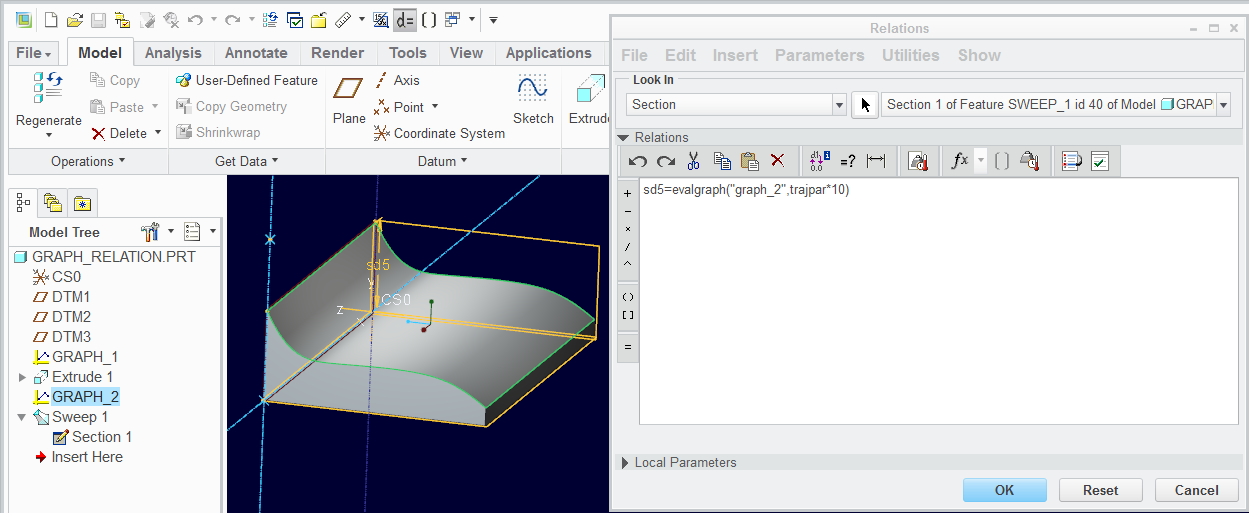

You might also look at the graph option. This is also a value driven by relations, but the relation is a graph. You can then be very specific about changes in the variable section sweep.


Patriot_1776
Patriot_177622-Sapphire IIAnswer
22-Sapphire II
October 14, 2013

I'm confused......do you want the overall LENGTH of the trajectory to be 41 or 42", regardless of the make-up (arcs/lines, etc.) of the trajectory? If so, you'll want to use the perimeter option in sketcher.

Inoram14-AlexandriteAuthor
14-Alexandrite
October 15, 2013

YES! that worked perfect, thanks.

TomD.inPDX17-Peridot
17-Peridot
October 15, 2013

Sorry Matt; I was assuming you knew about perimeter dimensions. My comments were related to the VSS sketch linking the perimeter value from the trajectory sketch. Glad Frank picked up on what you were really asking.
