How to create Dimension with Common reference in Creo 6

Hello

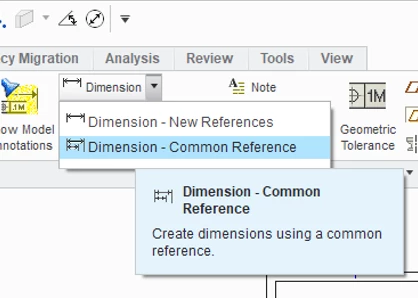

How we could create dimension using common reference in Creo 6 ( in the attached figure it shows for Creo 2)



Thanks

kdirth
kdirthAnswer
21-Topaz I
September 3, 2019

In Creo 4.0 and probably the same in 6.0, select the base reference, then, holding control key, select all other references before placing dimensions.

There is always more to learn.
View in thread

3 replies

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
September 2, 2019

@MohaSharifi

Dimension - Common references is o more available as it was merged in Dimension from Creo 3.0. You need to use CTRL for such dimensions.

Translate
    kdirth
    kdirth21-Topaz IAnswer
    21-Topaz I
    September 3, 2019

    In Creo 4.0 and probably the same in 6.0, select the base reference, then, holding control key, select all other references before placing dimensions.

    Translate
    There is always more to learn.
      MohaSharifi10-MarbleAuthor
      10-Marble
      September 5, 2019

      Thanks, yes it needs to select other references while holding the control key before finishing dimensions placement.
