How to create gap/space in between two dimension line

Hi,

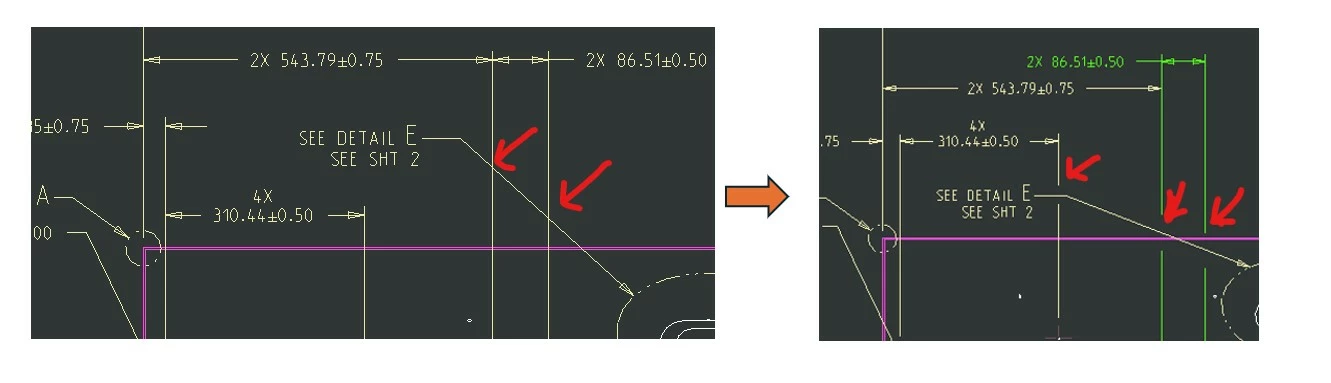

Can someone show the method how can i get this space in between dimension line?

How to break the dimension line to allow another line go through?



CREO VERSION 9.0.6

2 replies

MartinHanak24-Ruby III
24-Ruby III
Oct 21, 2025 6:46 AM UTC

Hi,

use Insert Break command presented in uploaded video.

Translate
    Srinivasan-Iyer15-Moonstone
    15-Moonstone
    Nov 11, 2025 7:29 AM UTC

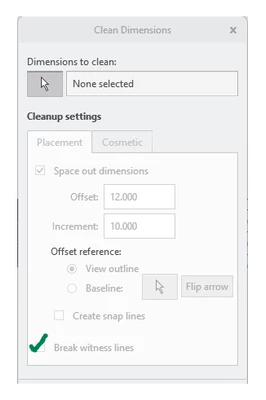

    One can use the "Cleanup Dimensions" command under Annotate Tab --> Edit Group.

    What you wish to break in the pic is the "Witness Line" and not the "Dimension Line"

    Tick mark the "Break Witness Lines"




    Translate
    Knowing, what we know is just a fistful of Earth, brings in humility.
