How to display a surface area measurement on the drawing

  • September 5, 2012
  • 1 reply
  • 897 views

I would like to display the surface area of a feature on my drawing.

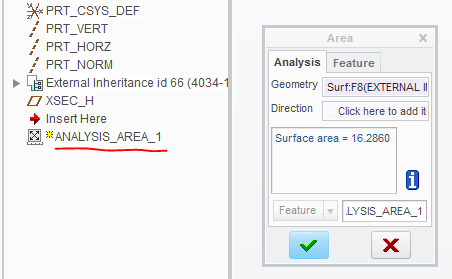

I've created a feature in the model named "analysis_area_1".


Is there a parameter name to make this display on the drawing?

Thanks in advance,

Jason


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

jmayer1-VisitorAuthor
1-Visitor
September 5, 2012

I think I have it.

I used &AREA:FID_ANALYSIS_AREA_1.

If there is another (better) way, please share.

Thanks,

Jason
