How to display the 3D annotation in Creo 1.0 while opening a model file created in Creo 2.0 with GCRI function?

Forum|Forum|13 years ago
December 12, 2012
3 replies
1692 views

Create a model with 3D annotation in Creo Parametric 2.0.

Open the model in Creo 1.0 with GCRI function. The annotation can be found in model tree but not display in model window.

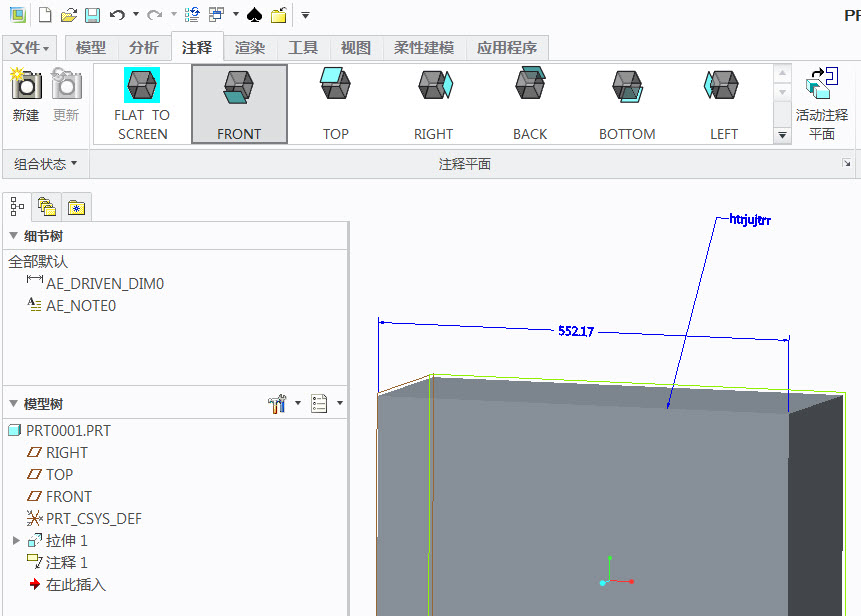

3D annotation in Creo 2.0

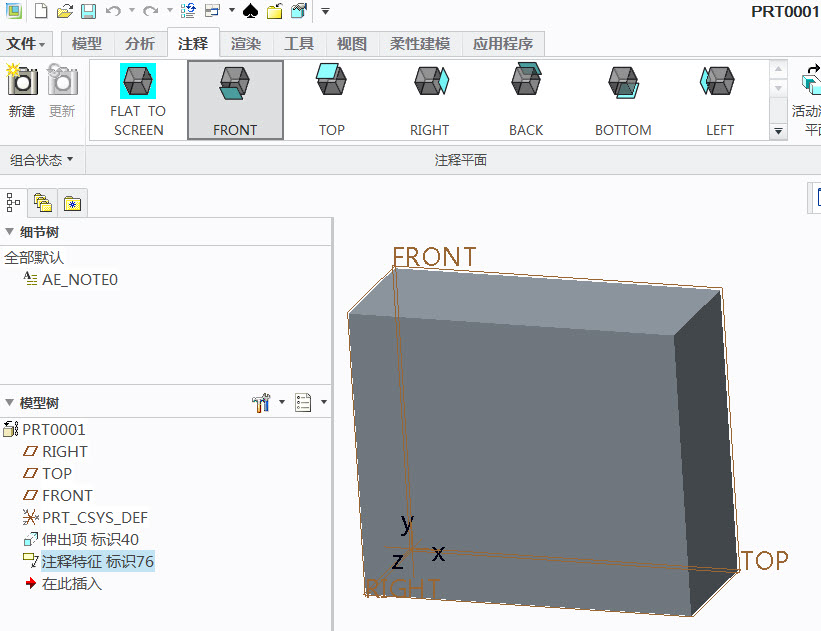

3D annotation in Creo 1.0 opening with GCRI function

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

C

Constantin

15-Moonstone

Hi Boa Jiang,

in the second screenshot the annotation feature (container) can be seen, but is there anything in there? Can you edit its definition and see the actual annotations?

T

TomD.inPDX

17-Peridot

GCRI? I hate acronyms

B

bmi

Author

5-Regular Member

Hi Constantin,

There is no any content in the annotation feature. I am not sure that GCRI function can transfor the annotation feature content - note, dimension, etc.

I have file an SPR 2160871 to RD.
