How to display value dimension instead of name in the display annotation box

Hello!

i have a question please.

I am not sure that it is possible, buf if yes, it would be great!

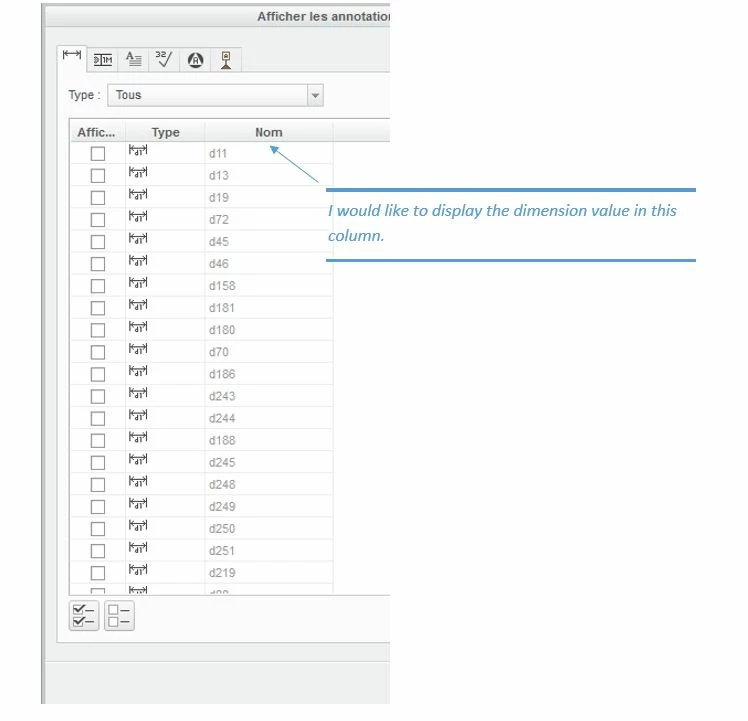

How to display value dimension instead/ in addition of value name in the "Show Model Annotations" box.

Thank you

22-Sapphire I

Hello,

It is possible, but for that you need assign name to diemnsions at part level. (As in below images).

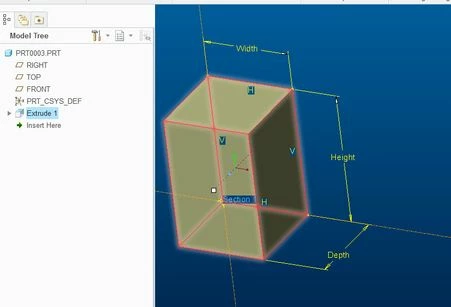

E.g. In part mode select dimension > Right Click > Properties > Enter name

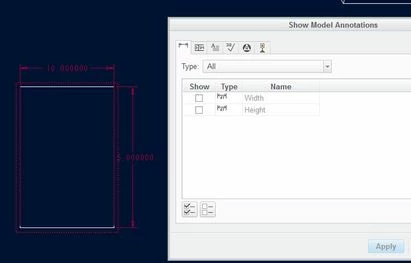

Part ModeDrawing mode

Author

1-Visitor

Hello.

Thank you for your answer, it may help even if it is not precisely what i wan't to do.

Best regards and thanks again.

22-Sapphire I

Thanks, mark the post as solved, if got the solution.
