Question

How to easily rename imported points

Forum|Forum|5 years ago
December 3, 2020
3 replies
4945 views

When importing thousands of points from an excell sheet, Creo assigns random names to them.

Is there a way to copy and paste the points' names from the excell sheet? (Instead of renaming them one by one )

Or alternatively use a script?

General

D

DavidBigelow

17-Peridot

You can do this with Nitro-PROGRAM -- for FREE.

Dave

K

karimhamdi

Author

1-Visitor

Can it be done with Nitro-cell since all the point names will be imported from excell ?

D

DavidBigelow

17-Peridot

Multiple paths to get there... with Nitro-CELL but it would also depend on the state of things in your model and what you are touching.

feature : rename expects a known "name" that you are renaming as a starting point for the function (e.g. if you know PNT123 is there - and you are renaming PNT123 -> MY_PNT9, then that 1:1 rename is easy).

If you are importing a bunch of points and letting Creo default the names to whatever is next - then you don't know the start names to rename to something else. This would change the approach slightly in that case - but still could be done.

feature : rename_type enables you to rename features by TYPE (e.g. POINT) and use a format like MY_PNT[1] -- where [1] is the incrementer that will be added to each renaming operation ... so PNT123, PNT5894, PNT28292 -> MY_PNT1, MY_PNT2, MY_PNT3...

feature : rename_pattern effectively does the same thing as rename type - but uses a group name as the reference for renaming content within it....

Unfortunately we don't have cool YouTube videos on these (yet) - but it is possible to use these functions to achieve your goal I think... there may be other combinations of functions and approaches -- this depends on you though...

Hope this helps.

Dave

M

MartinHanak

24-Ruby III

@karimhamdi wrote:

When importing thousands of points from an excell sheet, Creo assigns random names to them.

Is there a way to copy and paste the points' names from the excell sheet? (Instead of renaming them one by one )

Or alternatively use a script?

Hi,

unfortunately I do not see any easy solution. This is because point names shown in dialog box are not visible in model tree - they are hidden inside datum point feature (this feature contains points offset from coordinate system).

Option no.1 ... generate mapkey (if I were you I would develop simple program, which generates mapkey code specific for current situation)

I tested this option in Creo 7.0 ... see below.

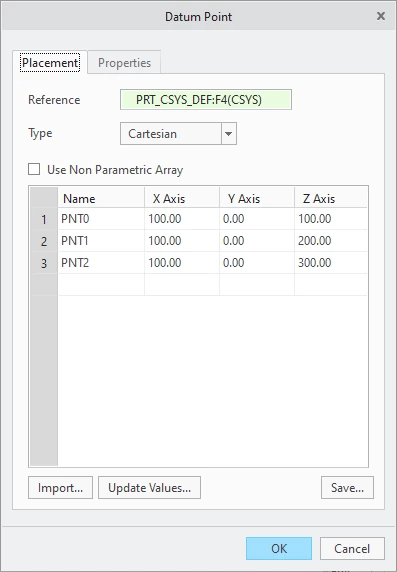

Names before modification

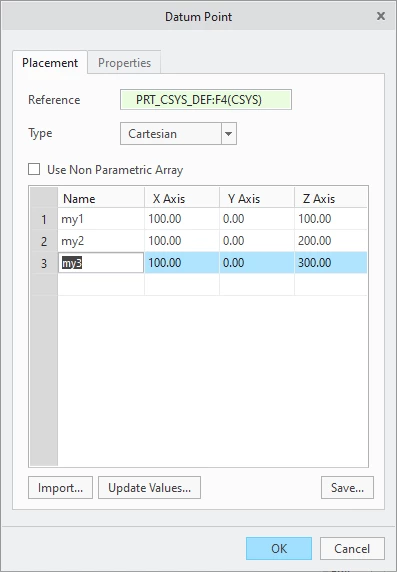

Names after modification

Mapkey ss code

mapkey ss \
mapkey(continued) ~ Select `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_0` `Name`;\
mapkey(continued) ~ RButtonArm `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_0` `Name`;\
mapkey(continued) ~ PopupOver `Odui_Dlg_00` `t1.pnts_table` 1 `t1.CSysPntsTbl`;\
mapkey(continued) ~ Open `Odui_Dlg_00` `t1.pnts_table`;~ Close `Odui_Dlg_00` `t1.pnts_table`;\
mapkey(continued) ~ Activate `Odui_Dlg_00` `t1.rename`;\
mapkey(continued) ~ Update `Odui_Dlg_00` `t1.PntNameInpPnl` `my1`;\
mapkey(continued) ~ Select `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_1` `Name`;\
mapkey(continued) ~ RButtonArm `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_1` `Name`;\
mapkey(continued) ~ PopupOver `Odui_Dlg_00` `t1.pnts_table` 1 `t1.CSysPntsTbl`;\
mapkey(continued) ~ Open `Odui_Dlg_00` `t1.pnts_table`;~ Close `Odui_Dlg_00` `t1.pnts_table`;\
mapkey(continued) ~ Activate `Odui_Dlg_00` `t1.rename`;\
mapkey(continued) ~ Update `Odui_Dlg_00` `t1.PntNameInpPnl` `my2`;\
mapkey(continued) ~ Select `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_2` `Name`;\
mapkey(continued) ~ RButtonArm `Odui_Dlg_00` `t1.CSysPntsTbl` 2 `okit_wdg_table_row_2` `Name`;\
mapkey(continued) ~ PopupOver `Odui_Dlg_00` `t1.pnts_table` 1 `t1.CSysPntsTbl`;\
mapkey(continued) ~ Open `Odui_Dlg_00` `t1.pnts_table`;~ Close `Odui_Dlg_00` `t1.pnts_table`;\
mapkey(continued) ~ Activate `Odui_Dlg_00` `t1.rename`;\
mapkey(continued) ~ Update `Odui_Dlg_00` `t1.PntNameInpPnl` `my3`;\

okit_wdg_table_row_0 ... 1st table row

okit_wdg_table_row_1 ... 2nd table row

okit_wdg_table_row_2 ... 3rd table row

my1, my2, my3 ... new point names

Option no.2 ... use some automation tool to execute rename action for you (for example AutoIt)

K

karimhamdi

Author

1-Visitor

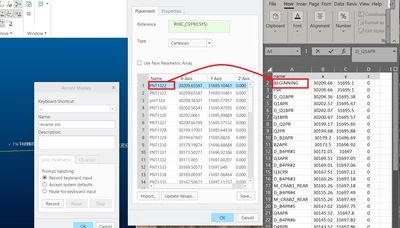

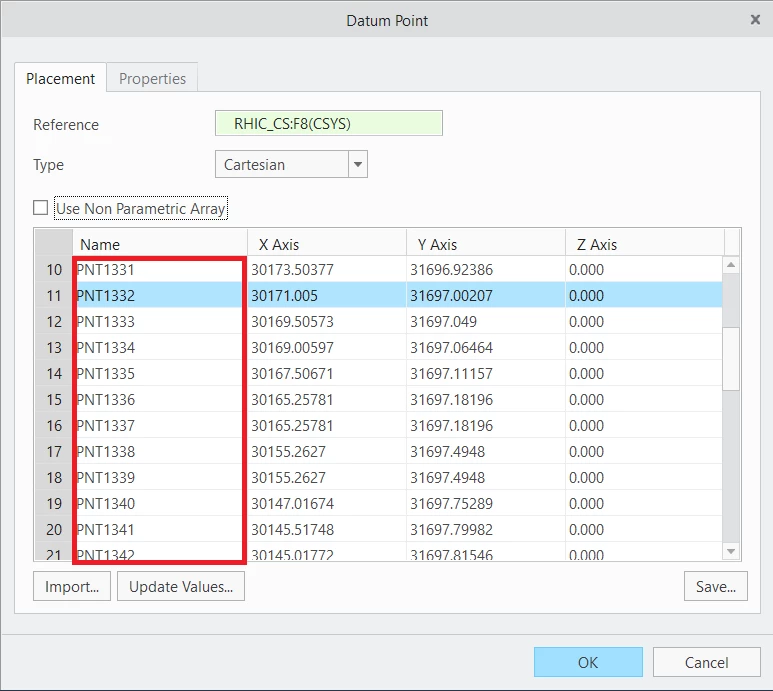

Thanks Martin, using Mapkeys is a brilliant idea. I can see how this would work. opened the datum points edit window and the excel sheet side by side and recorded a mapkey to copy and paste the cell value.

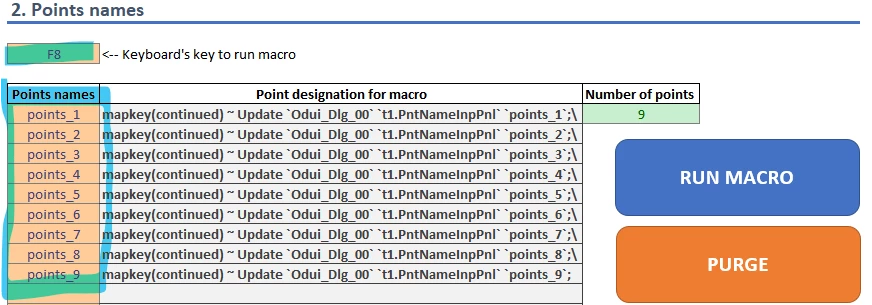

The difficult part is to automate the task to run down the table and copy/paste all the cells.
