How to export a part as STEP file with cosmetic sketches visible?

  • February 7, 2024
  • 3 replies
  • 5635 views

I've created a part model with lettering as a cosmetic sketch, and have been trying to export this part as a STEP file. However, whenever I open the step file, the lettering is completely missing. How can I ensure the cosmetic sketch lettering is visible on the exported STEP file?

Creo Parametric v7.0.4.0

3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
February 7, 2024

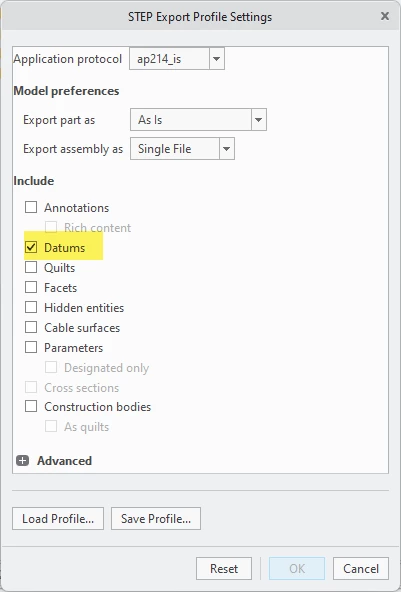

If the datum option in the export filter is not active, try turning that on and report back. I would also use the ap214_is protocol as shown below.






    N
    NM_108511351-VisitorAuthor
    1-Visitor
    February 8, 2024

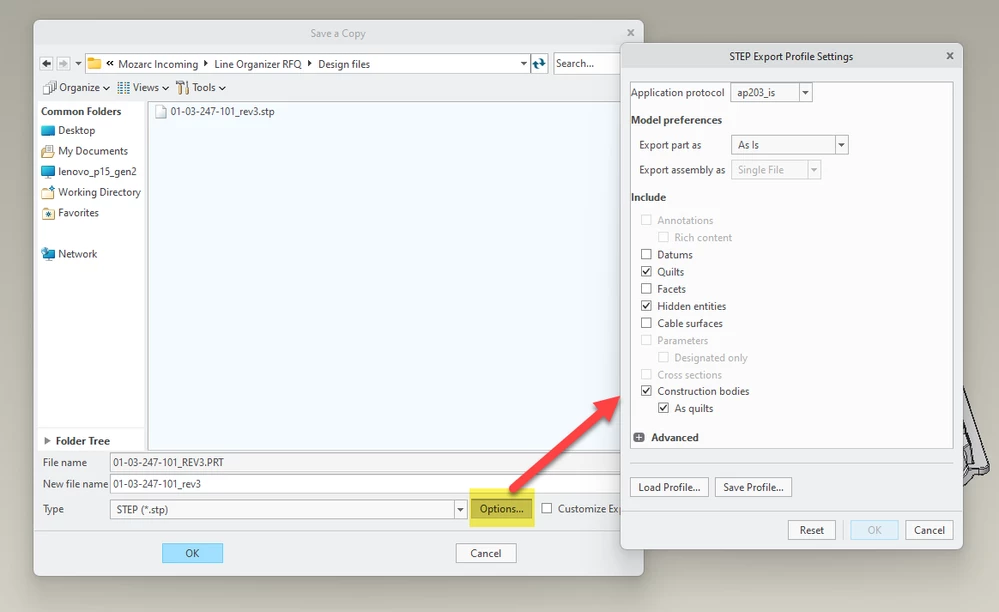

    Hi, I don't seem to have that menu when I have been saving as a STEP file. I have been saving the file as a copy with the file extension set to .stp, is there some other way I should be exporting to get these options?

    tbraxton
    22-Sapphire II
    tbraxton22-Sapphire II
    22-Sapphire II
    February 8, 2024

    File->Save as -> Save a copy








    Patriot_1776
    Patriot_177622-Sapphire II
    22-Sapphire II
    February 8, 2024

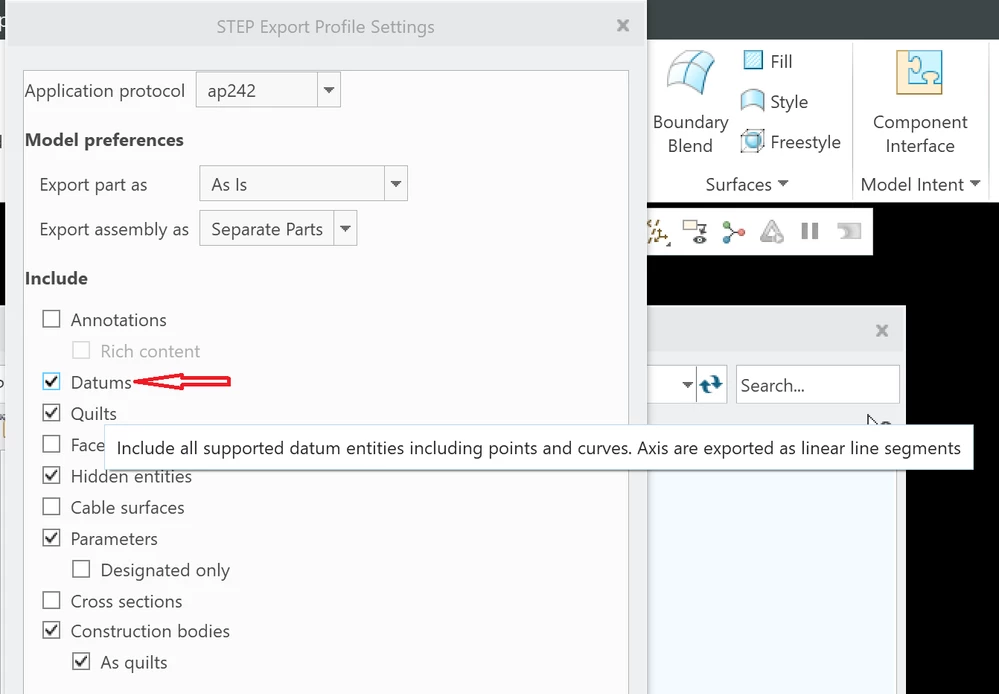

    Don't use cosmetic sketches, they're total garbage for a number of reasons.  Use a datum curve instead, and that should output if you have the "Datums" checked.


      N
      NM_108511351-VisitorAuthor
      1-Visitor
      February 8, 2024

      Okay, that is useful for future reference, but I have already used a cosmetic sketch here. Is there any way to get this to display on a STEP file?

      tbraxton
      22-Sapphire II
      tbraxton22-Sapphire II
      22-Sapphire II
      February 8, 2024

      I can confirm that it is possible to export a cosmetic sketch to a STEP file from within Creo. I have done it multiple times this week using the method I posted above.

      A
      AK_108176821-Visitor
      1-Visitor
      February 15, 2024

      Make sure your cosmetic sketch layer is not hidden (you can check it thru view >> layers)

      And then try to save as step, with settings that @tbraxton mentioned,

      It should be including cosmetic sketch into step file
