How to export boundary box dimensions in Modelcheck?

  • November 27, 2013
  • 1 reply
  • 3774 views

Hey all - this is my first post on this board. I come here with the hopes of gaining some knowledge! I have a rather large assembly and I am looking to export the boundary box dimensions of each individual part in a table with the columns of length | width | height. I have found the "overall size" or boundary box information in model check for all of the parts but I can't seem to find out how to export these rather than scroll through the built in web browser of Creo. Any help on this? Is there an easier way to do this aside from Modelcheck?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    1 reply

    P
    ptc-52108861-VisitorAuthor
    1-Visitor
    December 9, 2013

    Bump

    Anyone?

    P
    ptc-50080821-Visitor
    1-Visitor
    December 10, 2013

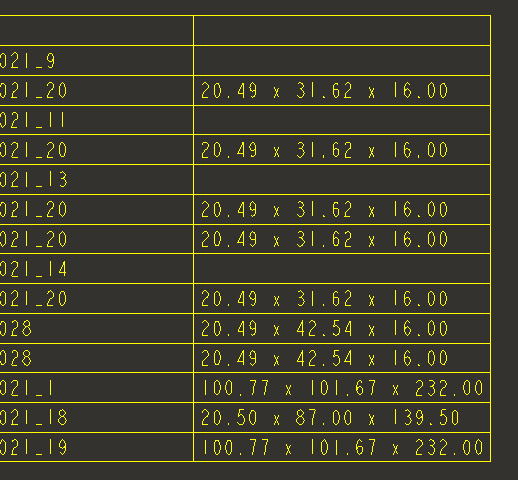

    If all you want to do is view the values of the overall size of the items, then create a table on a drawing of the assembly with a repeat region and use asm... mbr... then User Defined and enter mc_size

    This will list, in one cell on your table the size of the models.

    If you want to split it out into x y and z components it will become a little more complicated!

    e.g.



      P
      ptc-52108861-VisitorAuthor
      1-Visitor
      December 10, 2013

      I was looking to export the x, y, z into individual cells but I will probably be able to export the mc_size list as a .csv file and work some excel wizardry on it to split them up.

      EDIT: mc_size doesn't work for me. Does this have to be a parameter in each part?
