HOW TO FETCH DRAWING PARAMETERS IN DRAWING NOTE OR TABLE..?

  • July 24, 2021
  • 1 reply
  • 954 views
I am using Creo Parametric 3.0 M170

HOW TO FETCH DRAWING PARAMETERS IN DRAWING NOTE OR TABLE..?

Here are the errors that I faced
Need to fetch the drawing parameters such as "DRAWN BY"' ,"PART NUMBER" , "PTC WM LIFECYCLE STATE" etc. into Drawing.

    1 reply

    T
    TomU23-Emerald IV
    23-Emerald IV
    July 24, 2021

    &<PARAM_NAME>:D



    The ":D" on the end tells Creo to read that parameter from the drawing instead of the model.



    Model Parameters:




    Drawing Parameters:

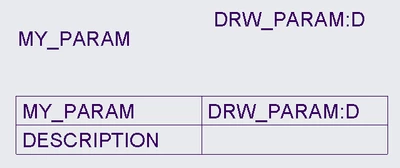

    What gets entered into the notes and tables on the drawing:

    (The ampersand in font of each of these is not displayed but it's there.)

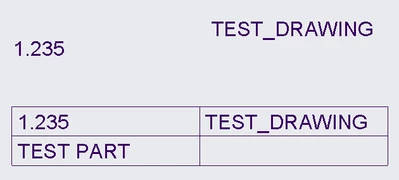

    Final result:
