How to find hidden components in an assembly

Forum|Forum|4 years ago
September 6, 2021
2 replies
4659 views

Could someone kindly send me this content:

CS210772 - How to find hidden components in an assembly in Creo Parametric 2.0? (ptc.com)

I would very much appreciate it.

I want to make a simplified representation with some hidden parts and don't want these parts appear in my BOM.

I tried to create the simplified representation by rule, but could not find hidden parts. There seem to be no way to choose the "Hidden Items" layer.

General

Best answer by LukaszMazur

That's probably because Hidden Items is a system layer and thus is not "seen" by the search tool.

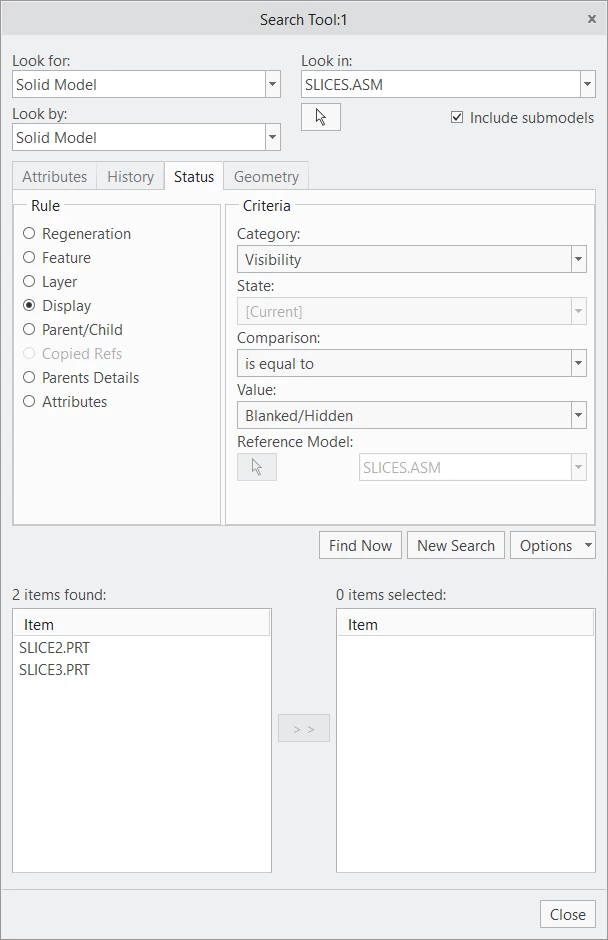

If you want to find hidden parts, in Search Tool set this options:

Look for/Look by: Solid Model

Status tab > Rule: Display > Category: Visibility > is equal to > Blank/Hidden.

(That's essentially what the KB article is saying).

L

LukaszMazur

Answer

16-Pearl

That's probably because Hidden Items is a system layer and thus is not "seen" by the search tool.

If you want to find hidden parts, in Search Tool set this options:

Look for/Look by: Solid Model

Status tab > Rule: Display > Category: Visibility > is equal to > Blank/Hidden.

(That's essentially what the KB article is saying).

H

Hidetaka

Author

1-Visitor

It is what I am looking for. Thanks a lot!

tbraxton

22-Sapphire II

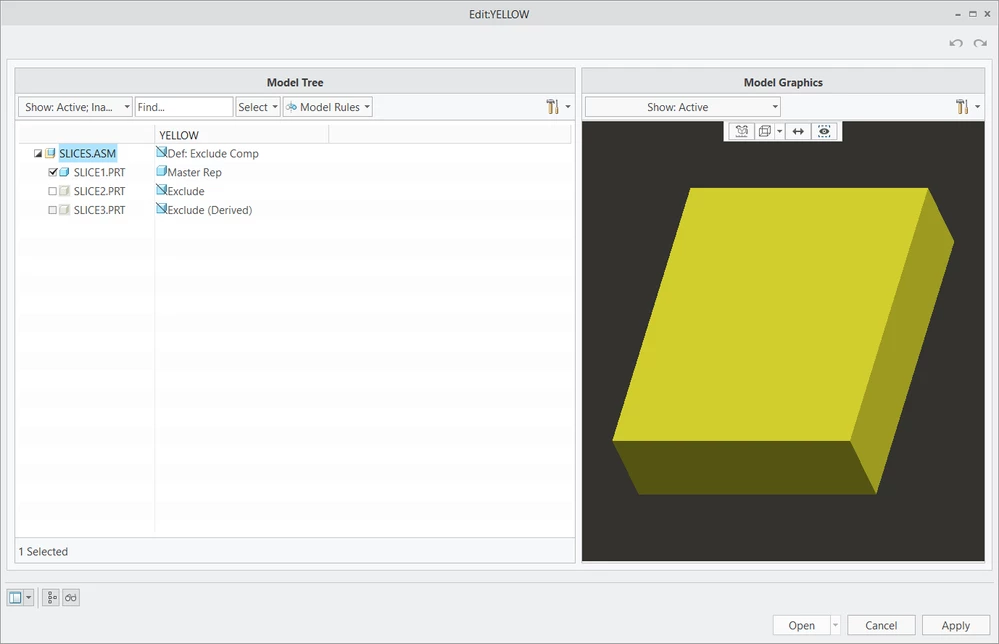

When you create a simplified rep, all components in the assembly should be presented in the rep UI, even if they are hidden. You will be able to select the components here even if they are hidden. Using selection by layer to select many components at once for efficiency makes sense but the "hidden" layer may contain items that you would not intend to manipulate with the simplified rep. If you want to use layers, I would not use the hidden objects layer for this purpose.

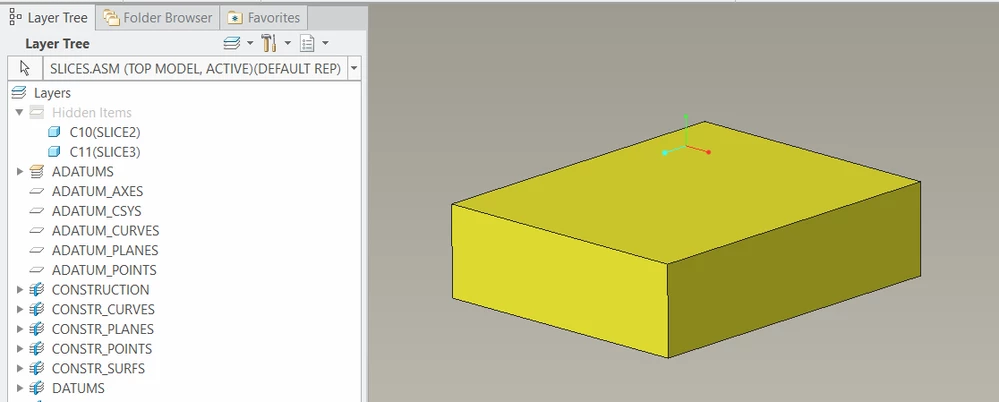

Search tool configuration as described by @LukaszMazur
