How to fix any sketch element?

  • December 3, 2019
  • 2 replies
  • 2628 views

I want to fix the position of an element of my sketch (e.g. a line or a point) in such a way that by defining any distance to it from any other elements such elements must move (and not the fixed one).

Is there a simple way to do it?

2 replies

HamsterNL
18-Opal
December 3, 2019

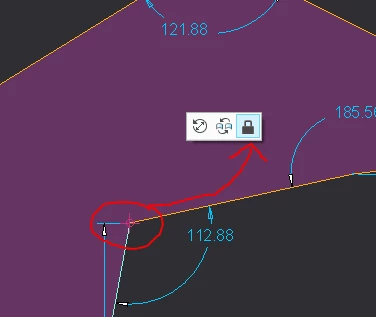

You can select a point or line, Right Mouse Button --> Toggle Lock

Toggle Lock.PNG

1-Visitor
December 3, 2019

1st, make sure your sketches contain at least (1) coordinate sys (sketcher),  then (2nd) set the horizontal or vertical constraint on the csys. Your sketches should be much more stable.
