how to flatten the curve in the sheet-metal module in creo 3.0?

how to flatten the curve in the sheet-metal module in creo 3.0? client is asking about the development of the curve portion of sheetmetal part in creo 3.0? client have mostly sheetmetal part have the curve at end of the part (we can say it is like radius in solid modelling) they are unable to develop the length that curve portion? they tried on other cad tools but other cad tools doesn't have the capability?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

MartinHanak24-Ruby III
24-Ruby III
January 19, 2016

Hi,

please upload some testing data (use How to attach file when you Reply to a discussion.)

MH

Translate
sghongade-21-VisitorAuthor
1-Visitor
February 1, 2016

IMG 2.jpg

Translate
MartinHanak24-Ruby III
24-Ruby III
February 1, 2016

Hi,

please upload your Creo model.

MH

Translate
TomD.inPDX17-Peridot
17-Peridot
February 2, 2016

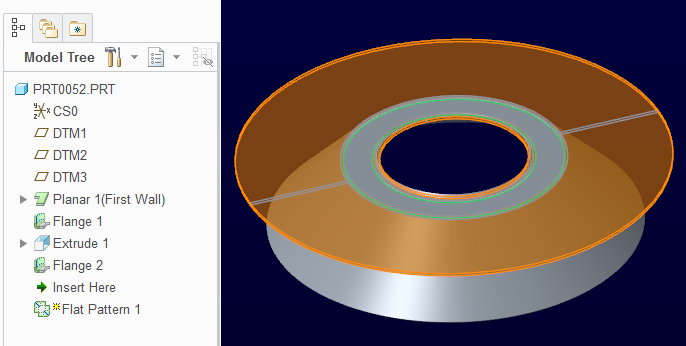

There are a few things you have to consider when making this model.  The problem is that you are forming the edge so deformation will take place.  When modeling sheet-metal, you always have to be aware of the process used to fabricate the part.  This part is either coined or rolled with a hem tool.  The results should be similar.  in Creo, if you use a form tool (feature), it will not account for the additional material in the flat pattern.  If you create this using a flange feature, it will unfold as best it can.
