how to flip geometric control frame to other side of leader in drawing

  • September 11, 2019
  • 1 reply
  • 6174 views

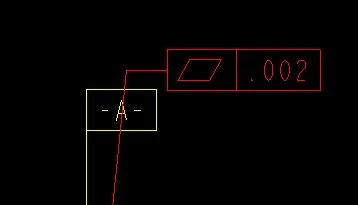

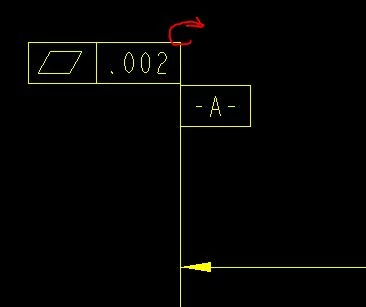

I am working in Creo 6 with an older drawing created in Creo 3.  I have added a flatness callout as can be seen in the attached screenshot labeled "flatness_left".  Creo will not allow me to flip the flatness control frame over to the right side.  When I try to move it to the right, it only gives me a bent leader line as can be seen in the screenshot labeled "flatness_right".  Is there a way to have the flatness frame be on the right with a straight and vertical leader?

Best answer by kdirth

Hold the shift key and drag the control frame.

1 reply

kdirth
21-Topaz I
kdirth21-Topaz IAnswer
21-Topaz I
September 13, 2019

Hold the shift key and drag the control frame.

There is always more to learn.
    B
    Blackhawk12-AmethystAuthor
    12-Amethyst
    September 17, 2019

    That worked!  I would have never figured that out.

      A
      Atlas_885010-Marble
      10-Marble
      May 12, 2022

      I too would have never figured this out. I'm not sure why the Creo team doesn't just have this as an option when you right-click on the annotation, like they do for regular dimension annotations.
