How to get same drawing view properties as general view to projection view ?

Forum|Forum|9 years ago
September 28, 2016
1 reply
1722 views

Hi..

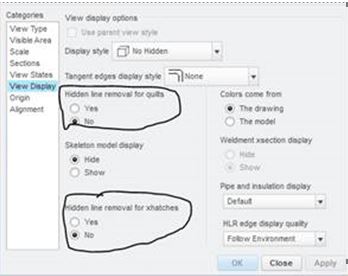

In drawing if i create general drawing view that time i need to set all its properties, like display type, tangent edge display style, skeleton model display etc. and if i put its projection view then for projection view also need to select same options.

So is there any way that projection view should take directly properties same as general view.

Regards,

Prashant Pandarkar

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2D Drawing

Best answer by StephenW

I don't think you can take the properties of the general view but you can change your drawing setup file so when you create new views, they will be consistent with your most commonly used view settings.

model_display_for_new_views

tan_edge_display_for_new_views

S

StephenW

Answer

23-Emerald III

I don't think you can take the properties of the general view but you can change your drawing setup file so when you create new views, they will be consistent with your most commonly used view settings.

model_display_for_new_views

tan_edge_display_for_new_views
