Question

How to paste it into the flat pattern on the surface?

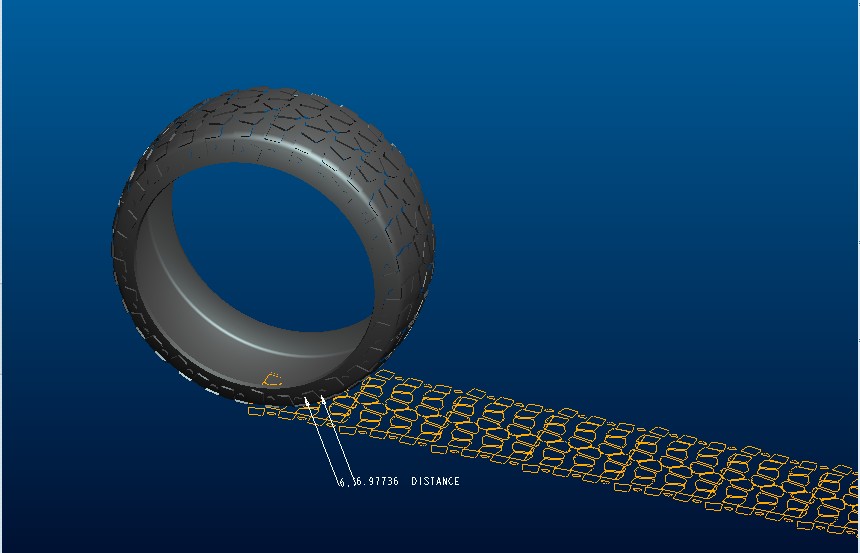

Hello, everyone, how the flat pattern as shown in the paste on the surface of the tire?

Requirements: the size can not be changed,

So can not use the normal projection

Will you have any good suggestions?

I heard that the envelope can be achieved, but do not know exactly how to operate, please advise

thank you in advance

Best Regards

Shuni



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

Steele1-Visitor
1-Visitor
May 6, 2012

Hi Shuni,

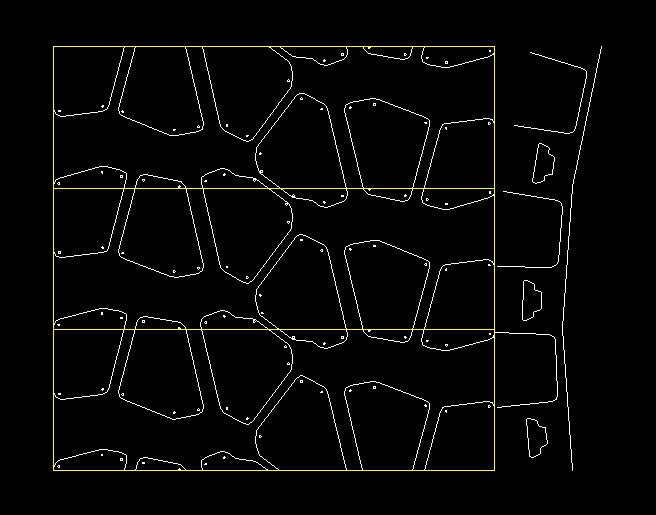

If i understand your question correctly, one method you could try is first make a flat feature of your tire, that is, you make a rectangle, then create a fill pattern of the feature you would like pattern on the tire. Lastly, you create a 360 toroidal bend using a cross section of the tire profile. Toroidal bend example.jpg

BR

Ric.

Translate
ShuniXiao1-VisitorAuthor
1-Visitor
May 7, 2012

Hi Ric.

First of all, thanks to your explanation.

I also tried this method, very simple to operate, but do not know you find this question: bending will change the original size.

See Figure:

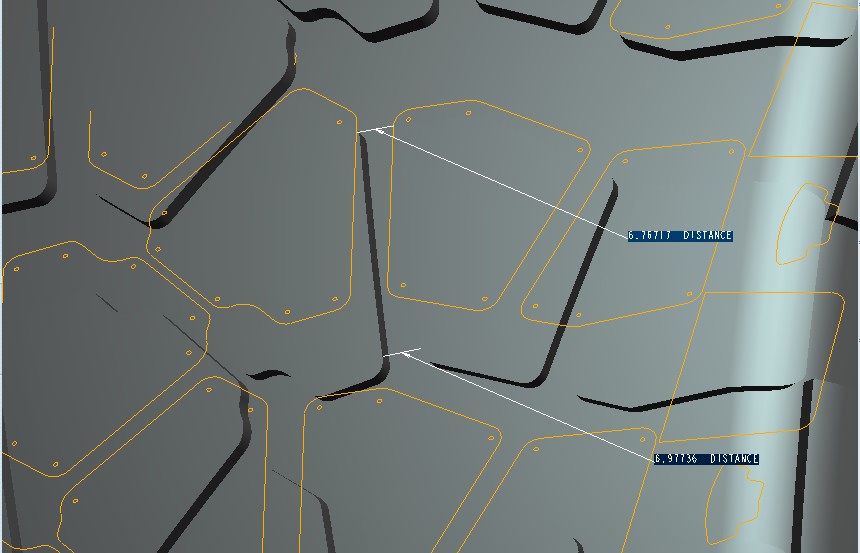

Wireframe on the size of the original size, on the entity's size is the size after bending between them is not changed it?

This is not permitted.

May I ask a more appropriate way?

Thanks again for your help.

Best Regards

Shuni

Translate
Steele1-Visitor
1-Visitor
May 20, 2012

Hey Shuni,

I am bit unsure how to pattern this feature without the size changing. One other option you could try is to create the pattern on a separate flat surface, and then save this a picture / color to be rendered onto the surface of the tire.. hope this helps..
