How to perform a simple swarf milling

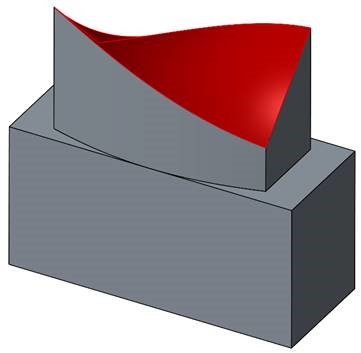

I have little experience with multiaxis machining and I am struggling with a simple swarf milling. The surface i want to mill is the following:

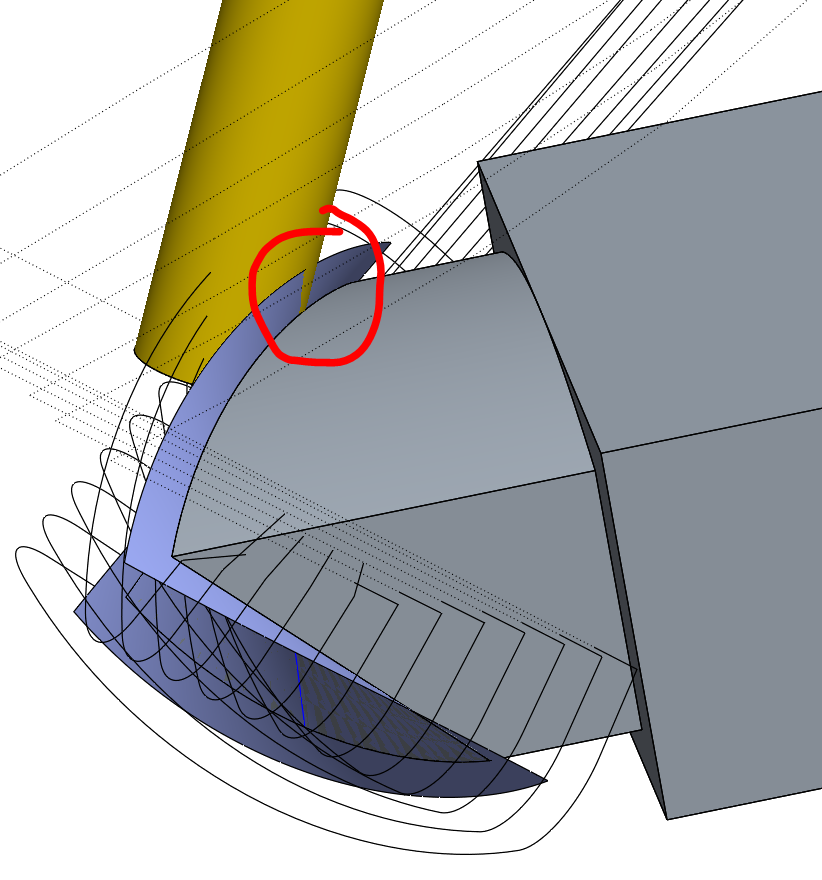

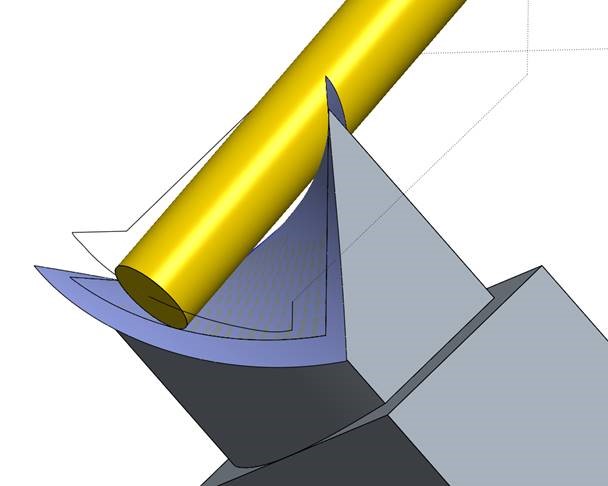

I have tried several sequences. With swarf milling sequence the tool does not seem to follow the surface:

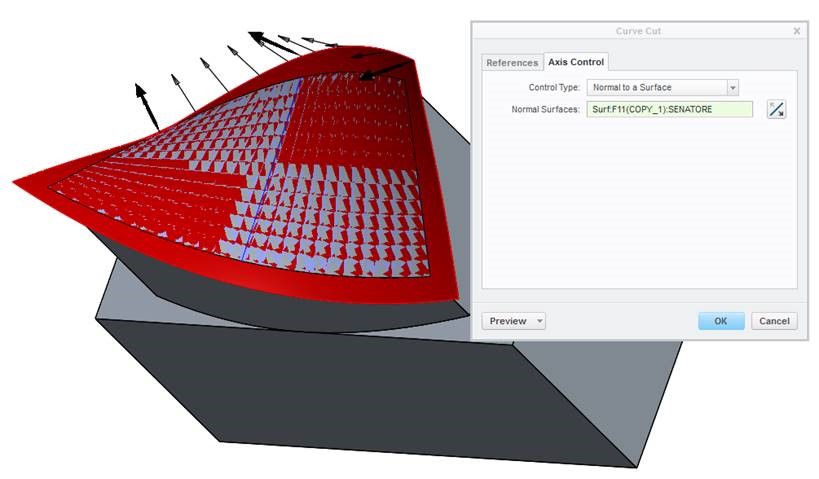

I can´t make trajectory sequence work...

I have done in the past some nice toolpaths with cut line milling but in this case i can´t get gouge free paths...

Any help would be greatly appreciated..

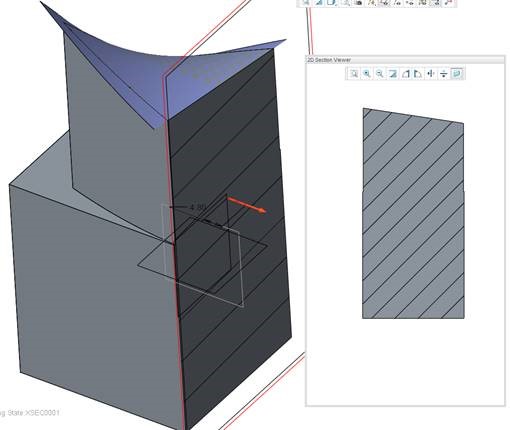

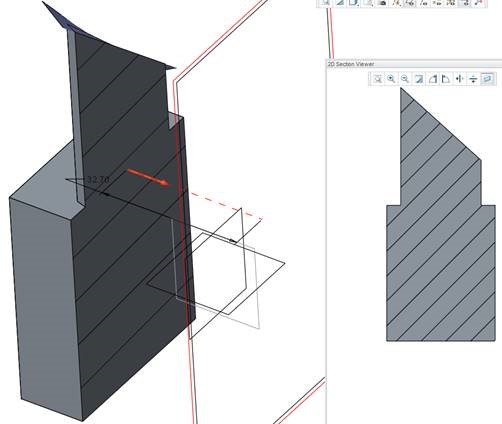

Some cross sections of the part:

Best answer by gkoch

Are you sure the surface can be machined with the tool side?

There are some concave looking areas - is there always a straight or convex path through each point on the surface, so that it can be machined?

10-Marble

Hi, you wish to machine this surface only with the side of the tool?

Author

10-Marble

Yes, only the side

Answer

1-Visitor

Are you sure the surface can be machined with the tool side?

There are some concave looking areas - is there always a straight or convex path through each point on the surface, so that it can be machined?

Author

10-Marble

It can´t be machined the way i wanted.... it is not geometrically possible.
