How to project a sketch onto multiple surfaces at once?

Hi all,



In the image below, I would like to project the sketch onto the revolve. I would like to project onto all of its surfaces at one time, if possible. Please note that the sketch overlaps between different surfaces. Preferably, I'd like to do this such that I could even extrude/offset the sketch from the surface.



Anybody have any suggestions? Thank you in advance!



Thank you,

Jeff Houston



tbraxton
tbraxtonAnswer
22-Sapphire II
Aug 12, 2022 1:32 PM UTC

One option is to select body surfaces (if you are in Creo 7+).

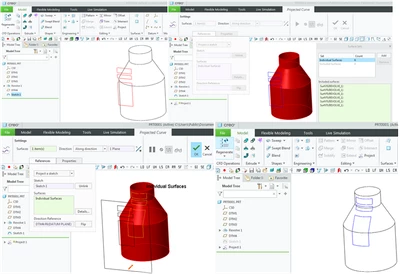

Circle sketch projected onto a body








3 replies

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
Aug 12, 2022 1:32 PM UTC

One option is to select body surfaces (if you are in Creo 7+).


Circle sketch projected onto a body








Translate
12-Amethyst
Aug 13, 2022 9:36 AM UTC

Creo 6 Student Version




Translate
kdirth
21-Topaz I
Aug 15, 2022 2:55 PM UTC

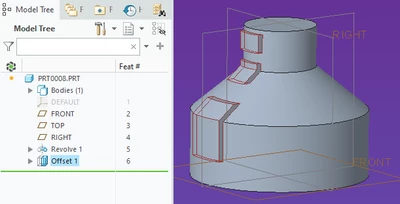

For the offset/extrude part of the question I would suggest using Offset > Expand > Sketched Region.
