How to protude a perpendicular tube?

  • September 22, 2012
  • 1 reply
  • 2230 views

Hello,

How would I protrude a cylinder perpendicular from the tube?

I need to protrude the cylender on both ends.

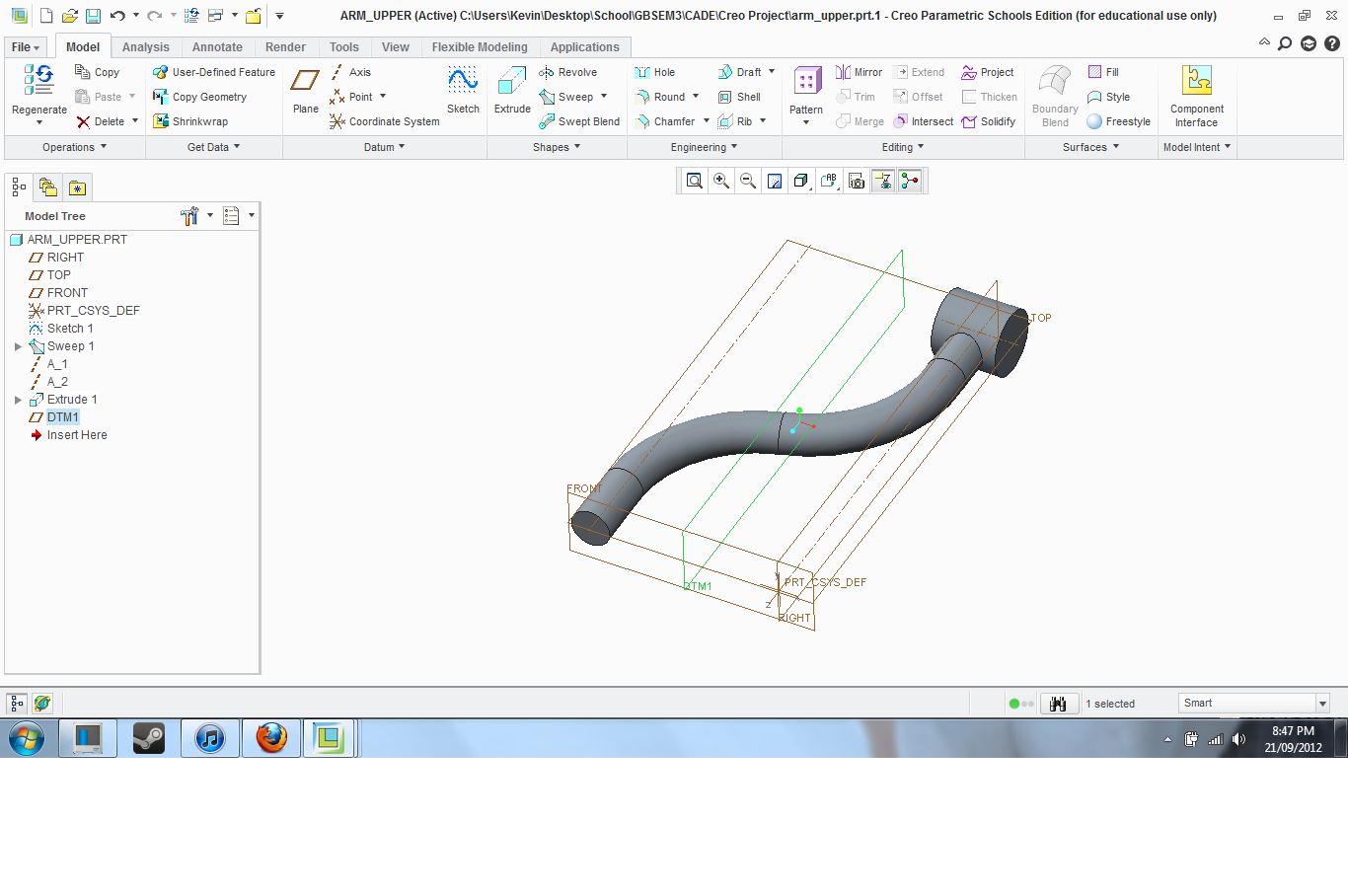

From the picture, I've tried drawing it on the Right Datum, but there is a right way of doing, which I have forgetten.

Can someone help me out?



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

K
KshetrabasiMaha1-Visitor
1-Visitor
September 22, 2012

Hi

Refer the document for different types of datum selection for creating features

If you still face problem ; Please reply

Regards

K.Mahanta

K
KevinB1-VisitorAuthor
1-Visitor
September 22, 2012

Thanks for the reply.

So, do you suggest using datums to create the part? Or, is that the only way?

Thanks again!

T
TomD.inPDX17-Peridot
17-Peridot
September 23, 2012

I would suggest another sweep. That way you can constrain the sketch to the original sweep to maintain perpendicularity regardless of what changes in the 1st sweep (within reason, of course). Just make sure the new sweep sketch is constrained to allow it to follow the 1st (no vertical/horizontal constraints).
