How to reinforce a limited-length bevel weld?

  • October 10, 2020
  • 1 reply
  • 2907 views

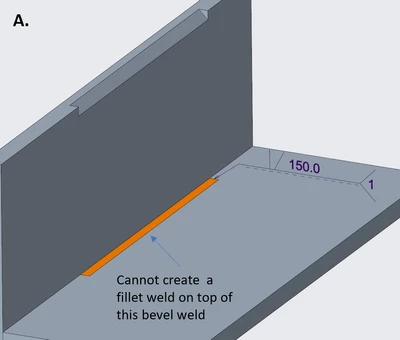

I need to join two plates at a right angle to each other using a bevel weld reinforced by a fillet weld.  The bevel weld is only located in the middle of the join and does not extend the full length of the joint surface.  I can create the bevel weld, but I cannot create the fillet weld on top of it (see image A).

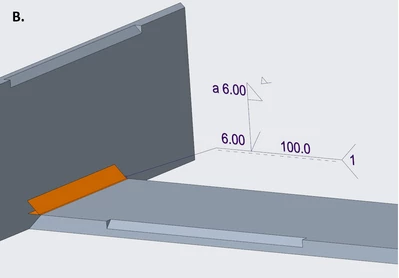

If the bevel weld extends the full length of the joint surface, then it is possible to create a fillet weld on top of it and combine the two welds (see image B).




What needs to be done to create a fillet weld on top of a bevel weld with defined end points (limited length)?





1 reply

R
RobertH15-Moonstone
15-Moonstone
October 12, 2020

Strange, because it should be possible.

Did you select the top surface of the bevel weld as one of the two surfaces of the fillet weld?




S
sellis341-VisitorAuthor
1-Visitor
October 12, 2020

@RobertH

Yes - that's exactly what I did.  I tried selecting it as a surface and as a quilt, neither would work.



Glad to see that it can be done!

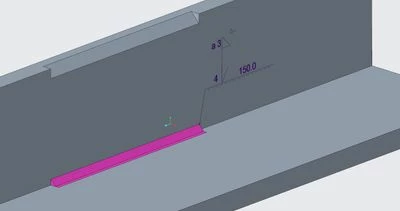

I've attached the files of the test model I've been using.  BEVELWELD2 works (bevel is created out of a full-length chamfer), BEVELWELD3 does not work (bevel is created out of a partial length chamfer).

Can you notice anything different in the definition of my welds to your welds?

R
RobertH15-Moonstone
15-Moonstone
October 12, 2020

I can't open the files probably due to different Creo versions (we have Creo 4.0).
