How to save explode views with file

Question

I'm wondering if there is a way to save out assembly explosions with a file in Creo such that they may be re-opened after closing Creo or rebooting the computer. For example, if I open a step file of an assembly and create an explode view - is there then any way to save that step file and preserve that explosion? Or is there a specific file format that preserves explosions?

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

mbonka · Answer

Hello David Klein

it´s is possible to save explode views for later use. l think your explode view hasn´t been saved. Unsaved explode view is marked with "+" (same like Simplified representation)

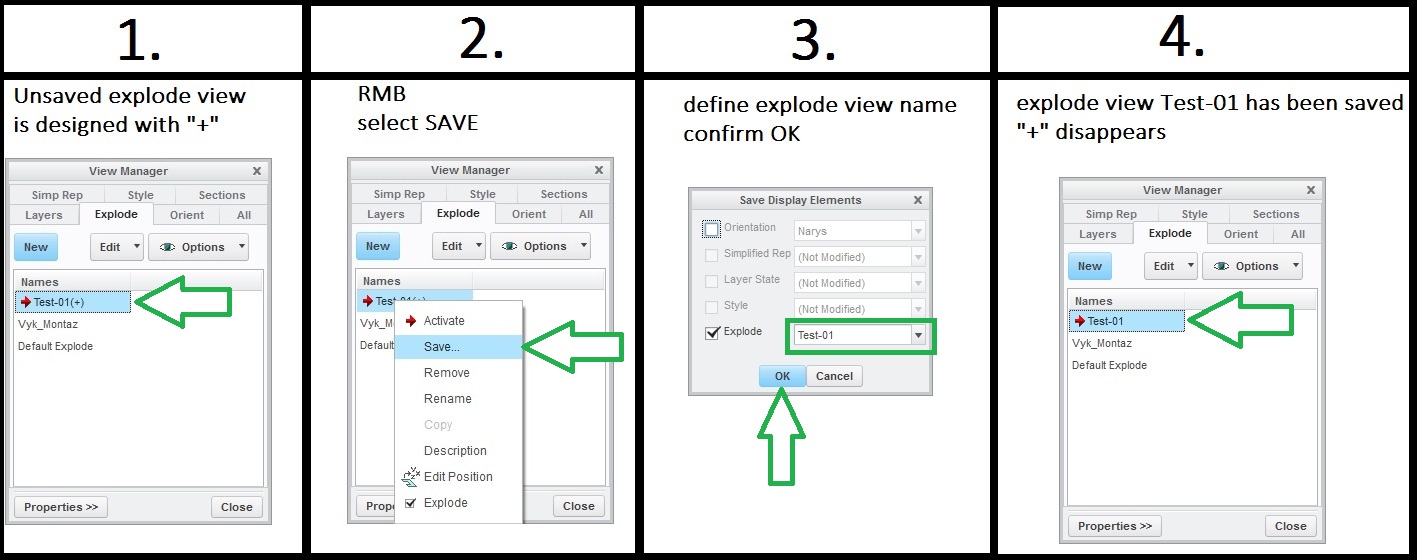

See following picture:

If you need export exploded assembly try following:

- create desired explode view

- save explode view

- set desired explode view active

- choose FILE - SAVE AS - select type *.STP - confirm OK

- your explode assembly schould be exported (try to open *.STP file to check it)

Don´t know any config options related to this "topic".

Hope it helps...

Regards

Milan
