Solved

How to set IFX .hol file

  • September 27, 2021
  • 1 reply
  • 2413 views

As per this thread - similar issue



@OliverGräbner Is there a limit on the number of hole charts we can specify with SCR_THREAD_SERIES_THREAD? Using Creo 4 M150 and IFX40-M041, it seems like only the first 5 will load into IFX, but we would like to use 6 to get different hole notes for key and knife inserts.



SCR_THREAD_SERIES_THREAD STD_THD M_THD STD_KEY M_KEY STD_KNF M_KNF



Switching the order changes leads to the last one not loading:

SCR_THREAD_SERIES_THREAD STD_THD M_THD STD_KNF M_KNF M_KEY STD_KEY

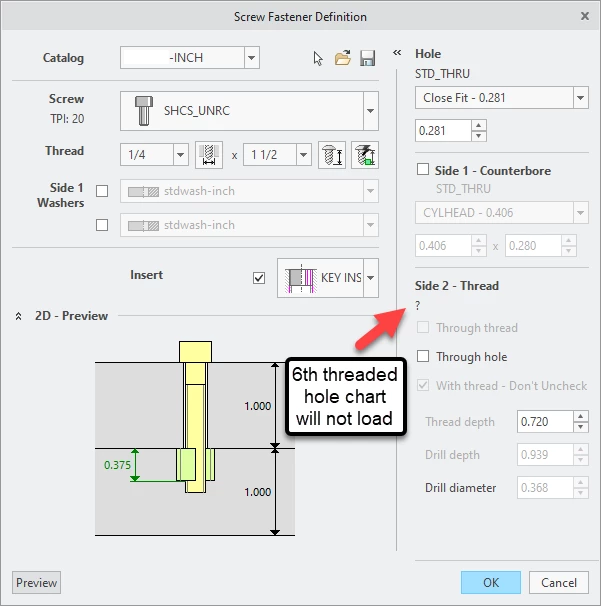

IFX Hole Chart Not Loading.png

Best answer by OliverGräbner

Hi,

I have checked this and you are right.

But there are good news.



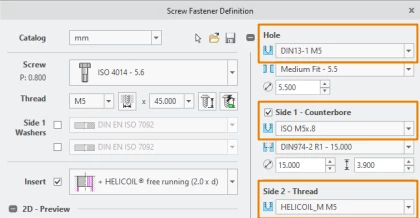

Since IFX 7.0.3.0 we have a new functionality for *.hol files in IFX.

You can now select the hole file you want to use.

IFX provides all possible hole files in a option menu.

You can preselect *hol files by adding different 'THREAD_NAME*' keywords to you fastener *.dat file

Fastener Data Files (ptc.com)




See also: New functionality for hole charts in IFX - PTC Community



Which IFX version are you currently working with?



1 reply

O
OliverGräbner17-PeridotAnswer
17-Peridot
September 28, 2021

Hi,

I have checked this and you are right.

But there are good news.



Since IFX 7.0.3.0 we have a new functionality for *.hol files in IFX.

You can now select the hole file you want to use.

IFX provides all possible hole files in a option menu.

You can preselect *hol files by adding different 'THREAD_NAME*' keywords to you fastener *.dat file

Fastener Data Files (ptc.com)




See also: New functionality for hole charts in IFX - PTC Community



Which IFX version are you currently working with?



    L
    lhoogeveen17-PeridotAuthor
    17-Peridot
    September 28, 2021

    We're using IFX Release 4.0 M041 and Date Code 2018.01.18.01.



    Glad to see new functionality coming. 😀 Does the preselection solve having to add .001 to the same hole diameters in different tables? How does it help with the limit of 5 threaded holes tables? If you have hole tables for standard threads, helicoils, knife inserts, and thread inserts (mm and inch for all) it's pretty easy to go past a limit of 5.

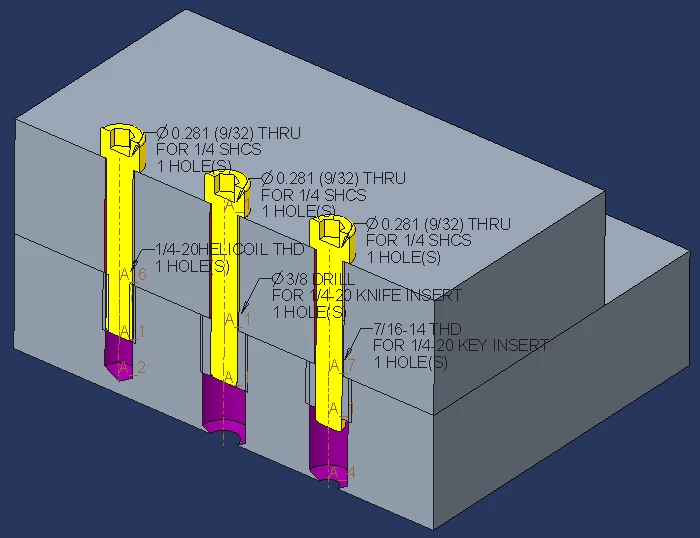

    Trying to get the insert notes to look something like this:



    IFX Insert Hole Notes.png

    O
    OliverGräbner17-Peridot
    17-Peridot
    September 29, 2021

    There is no more limit for the *_THREAD_SERIES_* options.

    You can enter as much hole files as you want.



    If you have a special hole file for a fastener you can add THREAD_NAME as keyword to the *.dat file.

    Then only this file is shown.



    If no filters are set, all possible hole files are shown.

    A hole file is valid, if the Diameter and the Pitch is correct.
