How to show 4 windows in one screen design in Creo

  • March 18, 2015
  • 2 replies
  • 4655 views

Dear Sir

I see the tool style can show 2, 3,4 windows screen

if normal window in Creo, we can set how 4 window (top, front, left, right)

sometime used freestyle tool, i want to set 4 window

or in design, I want to show 4 window like autocad

Thanks advance your help

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

M
MartinHanak24-Ruby III
24-Ruby III
March 18, 2015

Binh,

you can open the same model in several windows. Activate View tab, expand Window group and click New command.

Martin Hanak

B
bnguyen-212-AmethystAuthor
12-Amethyst
March 18, 2015

Dear Mr. Martin Hanak

Thanks your reply

but i want show 4 window (top, front, left,right) on one screen

because when design freestyle, i need show 4 screen more easy to design

your way open a new window with same model

Thanks

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
March 18, 2015

Binh,

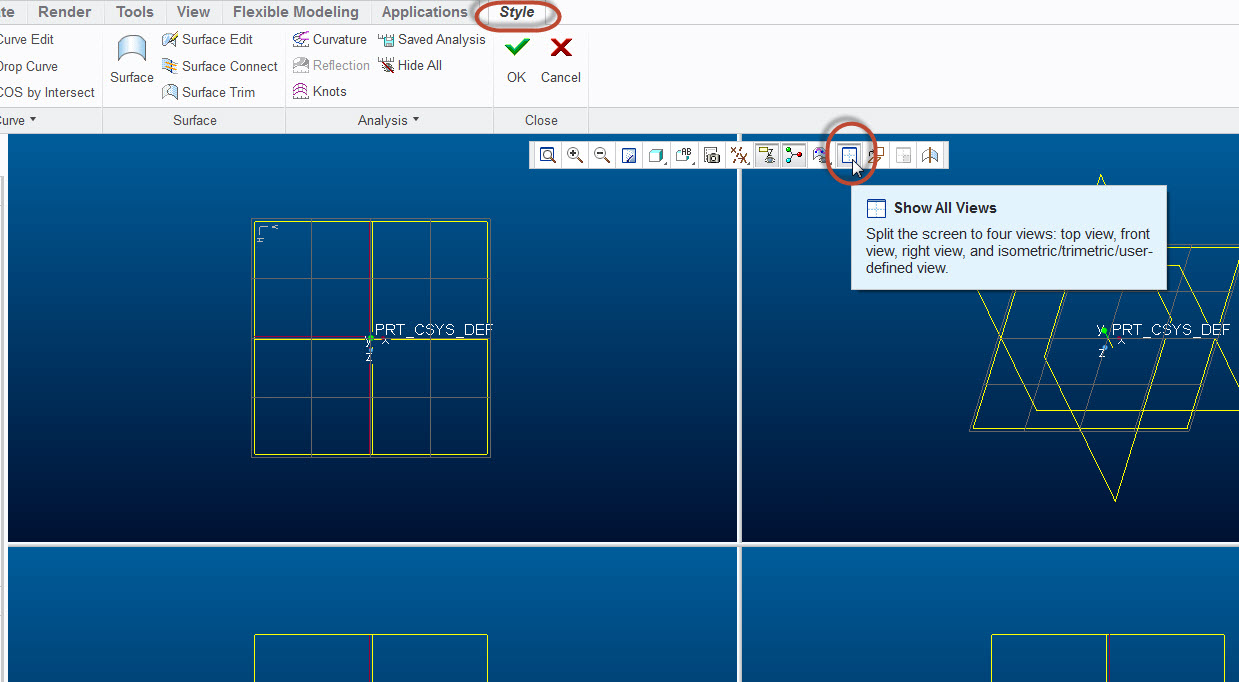

I think you are looking for "Show alll views" for Style, please correct me if I am wrong.



B
bnguyen-212-AmethystAuthor
12-Amethyst
March 18, 2015

Dear

Yes in style can used multi windows

But creo essential only

how to uswed multi windows?

Freestyle also need multi windows.

For assemby when create new part in assemby if can operation in multi windows is more good

Thanks

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
March 26, 2015

Binh,

Multi window (Show all views) is not available in other modules.
