How to show a curve in drawing mode

wf4


I created a curve in a part, and can select it in drawing mode. In drawing mode, however, i cannot dimension the curve, and I cannot permanently display the curve. Any suggestions?



note: this is a projected view of a part from a family tree.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

pfariello1-Visitor
1-Visitor
January 25, 2013

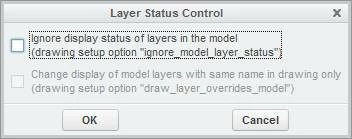

What does your drawing layer status look like? In the layer tree settings, select "Drawing Layer Status.." and check/ uncheck the appropriate boxes. You can have the layers follow the models or act independently in the drawing.

[cid:image001.jpg@01CDFB0E.DA070720]


Regards,
Patrick Fariello
CommScope
1300 E. Lookout Dr. Suite 150
Richardson, TX 75082
Translate
ptc-2678781-VisitorAuthor
1-Visitor
January 28, 2013

cool, but is there a way to show curves on some views and not on others?

Translate
pfariello1-Visitor
1-Visitor
January 28, 2013
Does anyone know where the "Appearance Placement" controls are in Creo 2? This is where you can change the scale and placement of a mapped image on a surface.

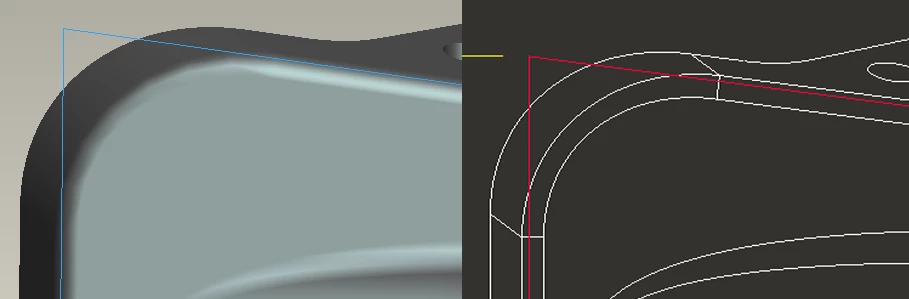

What it looks like in WF3
[cid:image002.jpg@01CDFD4E.683DF620]

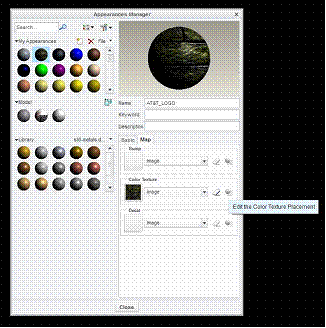

This option is grayed out, not sure why??

[cid:image003.gif@01CDFD4E.683DF620]

Thanks,

Patrick Fariello
CommScope
1300 E. Lookout Dr. Suite 150
Richardson, TX 75082
phone: 972-792-3303
