How to show text for 2 or more parameters from a part family table in a simple repeat region cell?

  • February 15, 2024
  • 1 reply
  • 1704 views

Hi,

Trying to show text from 3 parameters that are included in a part family table in a single cell that's part of a simple repeat region in a table on a family table part file drawing. How does reference a family table instance part parameter in a simple repeat region relation?

I have found examples of referencing assembly members but not part file instances.



Example of what I want the address cell to look like

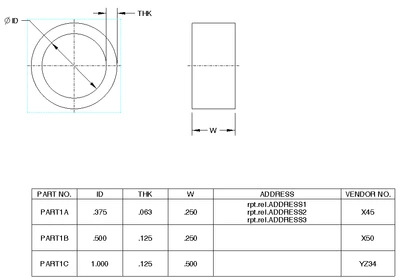

How table currently looks

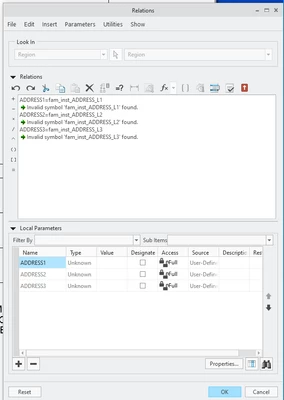

Example of repeat region relations not working


Appreciate any help you may provide,

Don A.
Creo 8 sample files attached



Best answer by MartinHanak

Hi,

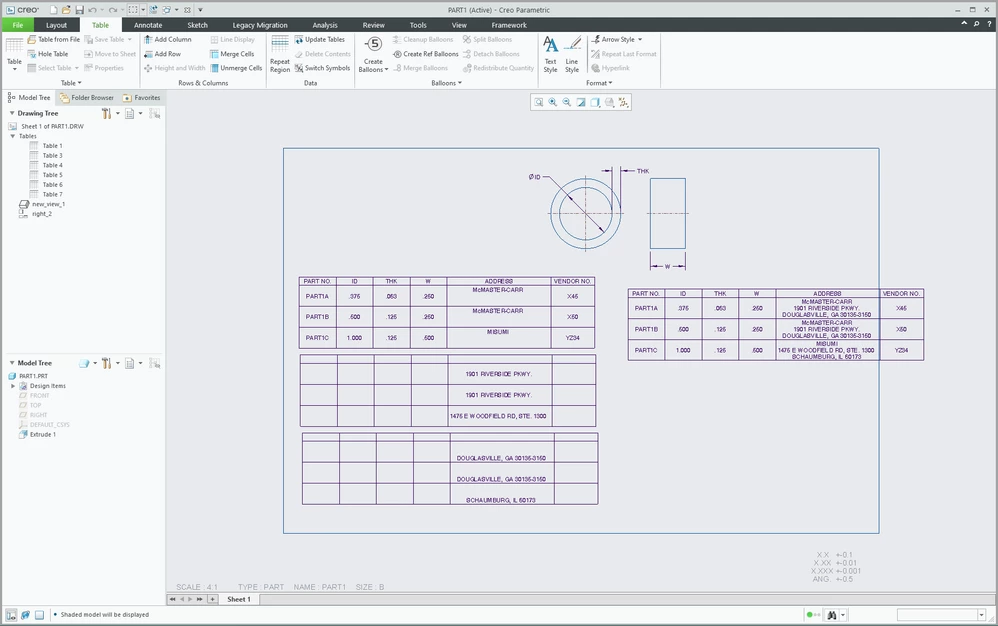

I modified your Table 1 and created Table 3, Table 4 (these are modified copies of Table 1).

Then I copied Table 1 to Table 5, Table 3 to Table 6, Table 4 to Table 7.

Finally I moved Table 5, Table 6, Table 7 so they overlap. A large zoom is required when moving the tables.

Modified data attached.

1 reply

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
February 15, 2024

Hi,


I modified your Table 1 and created Table 3, Table 4 (these are modified copies of Table 1).

Then I copied Table 1 to Table 5, Table 3 to Table 6, Table 4 to Table 7.

Finally I moved Table 5, Table 6, Table 7 so they overlap. A large zoom is required when moving the tables.

Modified data attached.

    kdirth
    kdirth21-Topaz I
    21-Topaz I
    February 15, 2024

    "A large zoom is required when moving the tables"



    I would suggest selecting each table and use Move Special


    Select the top left corner and enter location values.




    There is always more to learn.
      M
      MartinHanak24-Ruby III
      24-Ruby III
      February 15, 2024
      @kdirth wrote:

      "A large zoom is required when moving the tables"



      I would suggest selecting each table and use Move Special


      Select the top left corner and enter location values.




      Hi,

      I had to Customize LMB menu and to add Move Special command into it.

      Terms & ConditionsAccessibility statement
