I am not being shown the option of solid geometry in references of toroidal bend.

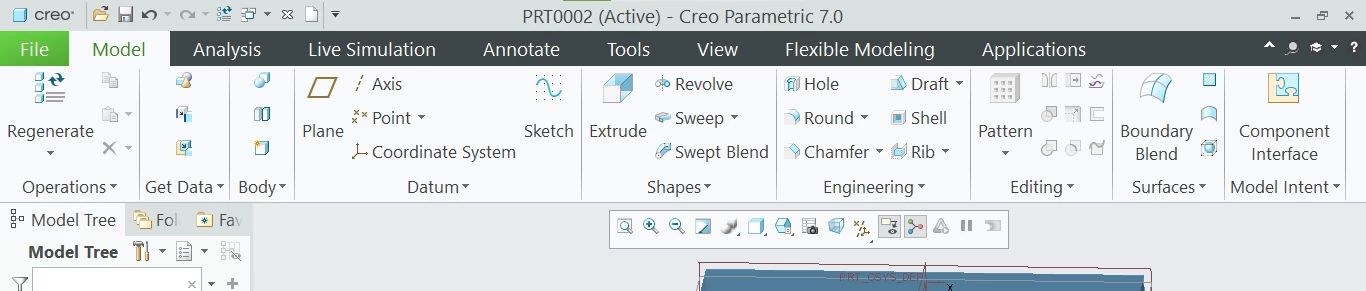

I have creo parametric 7.0.

LukaszMazurAnswer
16-Pearl
Jun 27, 2022 6:29 AM UTC

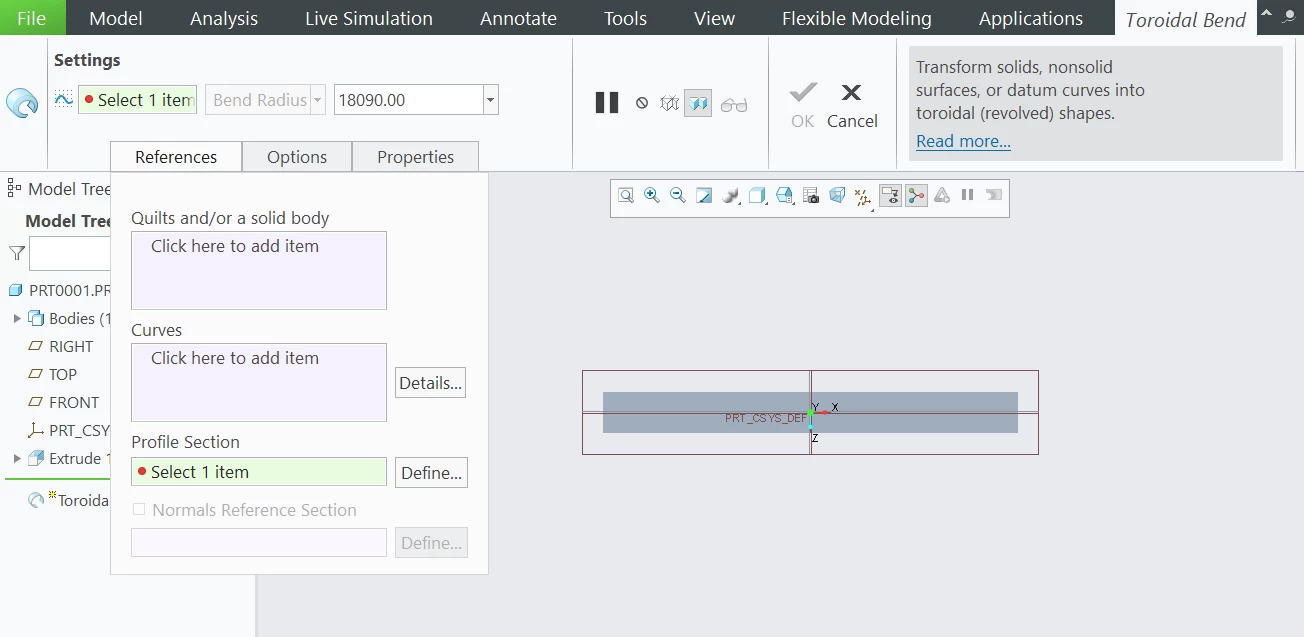

Since Creo 7.0 introduced multibody modeling, the option "Solid Geometry" in Toroidal Bend has been replaced with the collector "Quilts and/or solid body", which is shown in your screenshot. So now, instead of clicking "Solid Geometry" to apply Toroidal Bend to all solid geometry in the model, you need to activate the collector and pick the body you want apply the bend to (you may select only one solid body).

View in thread

5 replies

remy21-Topaz I
21-Topaz I
Jun 24, 2022 6:57 AM UTC

You expect a solid geometry option when creating a toroidal bend and it is not offered. you're disappointed.

In order to clarify your expectations attaching the model shown in the picture will be well appreciated.



Translate
AH_103472631-VisitorAuthor
1-Visitor
Jun 24, 2022 8:08 AM UTC

my model is creo parametric 7.0

Translate
StephenW
StephenW23-Emerald III
23-Emerald III
Jun 24, 2022 12:29 PM UTC

So I believe a toroidial bend is a "modification" to existing geometry, You are not creating new geometry, you are changing what is existing.

Try looking at a youtube tutorial.

https://www.youtube.com/watch?v=3qsL7nGbxsM



Translate
    LukaszMazur16-PearlAnswer
    16-Pearl
    Jun 27, 2022 6:29 AM UTC

    Since Creo 7.0 introduced multibody modeling, the option "Solid Geometry" in Toroidal Bend has been replaced with the collector "Quilts and/or solid body", which is shown in your screenshot. So now, instead of clicking "Solid Geometry" to apply Toroidal Bend to all solid geometry in the model, you need to activate the collector and pick the body you want apply the bend to (you may select only one solid body).
