I have a question while using the Creting Mirrored Assemblies feature.

  • May 20, 2023
  • 1 reply
  • 1310 views

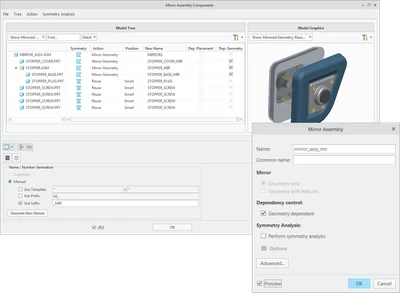

This is a mirror copy of the entire assembly.




There is no need to separately set the reference side for mirroring, just press Save a Mirror Assembly. What side do you mirror copy to?

Also, is there any way to manually set the mirror reference plane???





Best answer by MartinHanak
@Inho-_- wrote:

Thank you for your reply.

So, is it possible to change the base?

Hi,

I am afraid that Mirror Assembly command does not enable user to select mirror plane.

Solution:

  • create new empty assembly
  • create mirror plane
  • assemble your assembly
  • use Mirror Component command



1 reply

M
MartinHanak24-Ruby III
24-Ruby III
May 21, 2023

Hi,

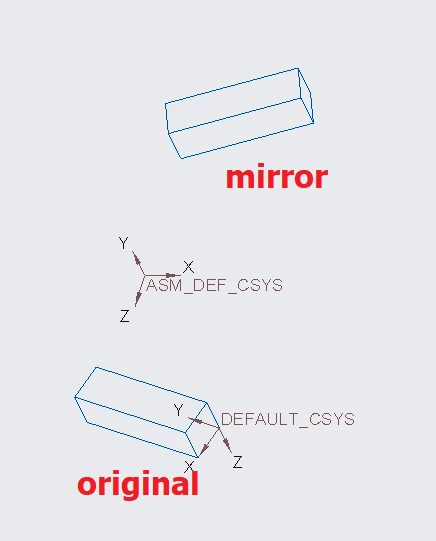

assembly is mirrored about XY plane of default ASM_DEF_CSYS coordinate system. See picture.




I
Inho_14-AlexandriteAuthor
14-Alexandrite
May 22, 2023

Thank you for your reply.

So, is it possible to change the base?

M
MartinHanak24-Ruby IIIAnswer
24-Ruby III
May 22, 2023
@Inho-_- wrote:

Thank you for your reply.

So, is it possible to change the base?

Hi,

I am afraid that Mirror Assembly command does not enable user to select mirror plane.

Solution:

  • create new empty assembly
  • create mirror plane
  • assemble your assembly
  • use Mirror Component command
