Question

I need the CoG and its coordinated in creo table

  • October 7, 2024
  • 2 replies
  • 2012 views

Hi,
I need to get the COG coordinate of part with respect to assembly origin in drawing.

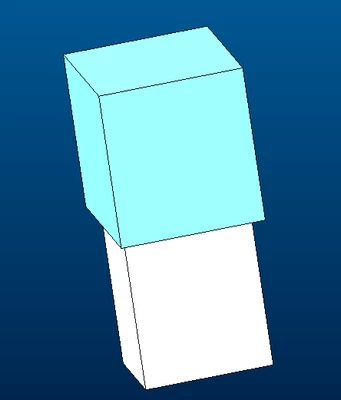

For consider an assembly as shown bellow


In drawing file, I need to make table with part name, weight, Coordinates of center of gravity with respect to the main assembly(X,Y,Z). how to get it?

2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
October 7, 2024

https://community.ptc.com/t5/3D-Part-Assembly-Design/Create-a-datum-point-on-COG-with-creo-parametric-using-relations/m-p/440436

This post answers this.



**Edit** Once you get the parameters created, you can use the parameters in a table on the drawing.

M
MartinHanak24-Ruby III
24-Ruby III
October 7, 2024

Hi,

please describe how you get the COG coordinate of the part now.

Also replay uploaded video.

A
AA_110077224-ParticipantAuthor
4-Participant
October 9, 2024

Hi,
Think there are 100 components in my assembly.Is there any automated way where we will get the COG in terms of X,Y,Z in drawing file in table.



M
MartinHanak24-Ruby III
24-Ruby III
October 9, 2024
@AA_11007722 wrote:

Hi,
Think there are 100 components in my assembly.Is there any automated way where we will get the COG in terms of X,Y,Z in drawing file in table.



Hi,



I hope it is possible to automate table creation. Below you can find my idea how to do this. Unfortunately the resulting table is not parametric - if you update assembly then table does not update automatically. Also preparing automation procedure is time consuming.



step 1.]

Create file containing list of component names.



step 2.]

Generate trail file which generates mass properties .m_p file for every component from the above mentioned list.



step 3.]

Start Creo, open assembly and play above mentioned trail file.



step 4.]

Create application which extracts requested information from .m_p files and put it into .csv file



step 5.]

Run above mentioned application.



step 6.]

Start Creo, open drawing and create table from above mentioned .csv file.
