Question

I want to remove material in specified feature without any other feature damage

  • August 22, 2020
  • 3 replies
  • 1651 views

I want to remove material in specified feature without any other feature damage 2212.PNG11111.PNG

    3 replies

    kdirth
    21-Topaz I
    kdirth21-Topaz I
    21-Topaz I
    August 24, 2020

    CREO does not allow for trimming of only one feature in a solid model.



    Few options:

    1.  Create the center extrusion in the correct shape initially.

    2.  Create the center extrusion first.

    3.  Make the ends surfaces, make the center solid, solidify the ends after the center has been cut.

    • Surface features remain separate entities that you can individually modify until they are merged with another surface or solidified.





    There is always more to learn.
    D
    dnordin16-Pearl
    16-Pearl
    August 24, 2020
    The multi-body capability in Creo Parametric 7.0 should allow you to perform the cut on just one body although I haven't specifically tested it yet. Regards, Dan N.
    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 25, 2020
    @DP_9604994 wrote:

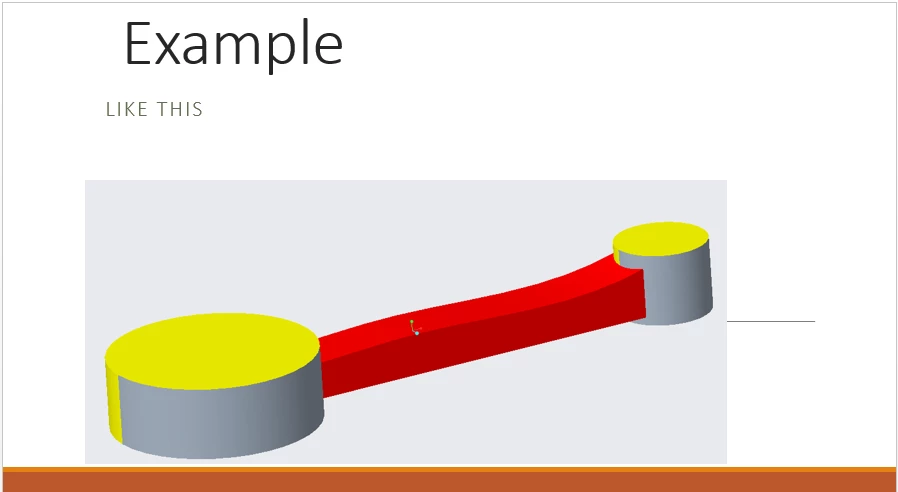

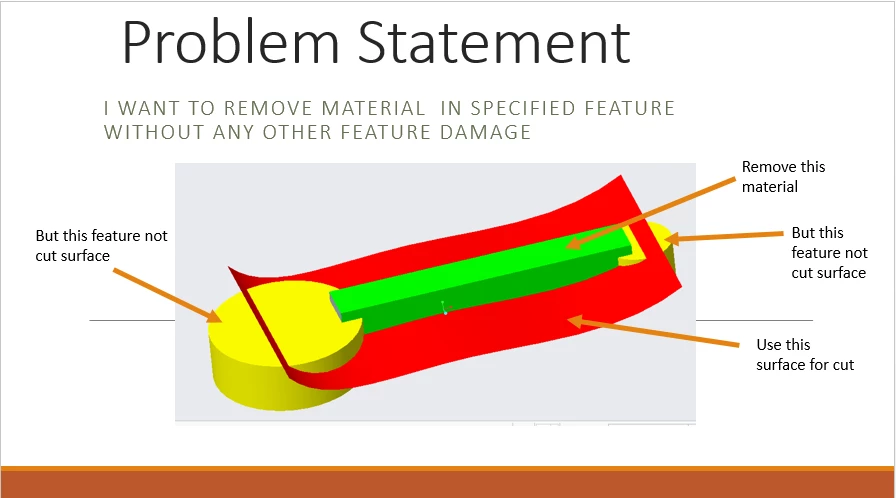

    I want to remove material in specified feature without any other feature damage 2212.PNG11111.PNG

    Hi,

    I uploaded 3 examples.
