Identify missing reference for local section - Creo 10

Hi Community,

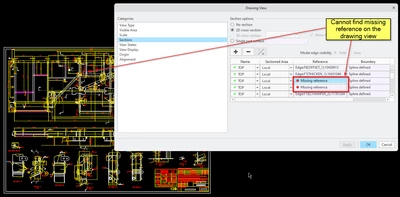

Creo 10 drawing interface - Is there a way to identify a missing reference for local section in drawing view properties.




5 replies

StephenW
StephenW23-Emerald III
23-Emerald III
Sep 8, 2025 3:11 PM UTC

Not really, not that I know of.

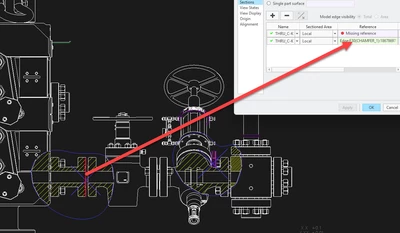

So if you click on the ones that are NOT missing and you watch the drawing view, the "non-missing" ones will highlight. So you will be able to rule out those in a few clicks, then you can try to re-select the missing one and it will only let you pick within the  spline sketch of the one that is correct.

It's like a little puzzle you have to put together, keeps you on your toes!






Translate
aconnor8-GravelAuthor
8-Gravel
Sep 10, 2025 10:18 AM UTC

Thank you StephenW.

Yes this is an option but on a very large drawing / view with a lot of detail it seems difficult to watch the highlighted items.

Translate
StephenW
StephenW23-Emerald III
23-Emerald III
Sep 10, 2025 11:46 AM UTC

I agree completely...it's horrible. I also do a lot of welded structures and i hate when I open up the drawing after making significant changes. It can take a significant amount of time to find reference issues.
