Import and Export drawing with strange representation

  • March 15, 2023
  • 2 replies
  • 5802 views

Hello,



I would like to generate a 2D - .pdf-drawing from a file, which is an .dwg file.

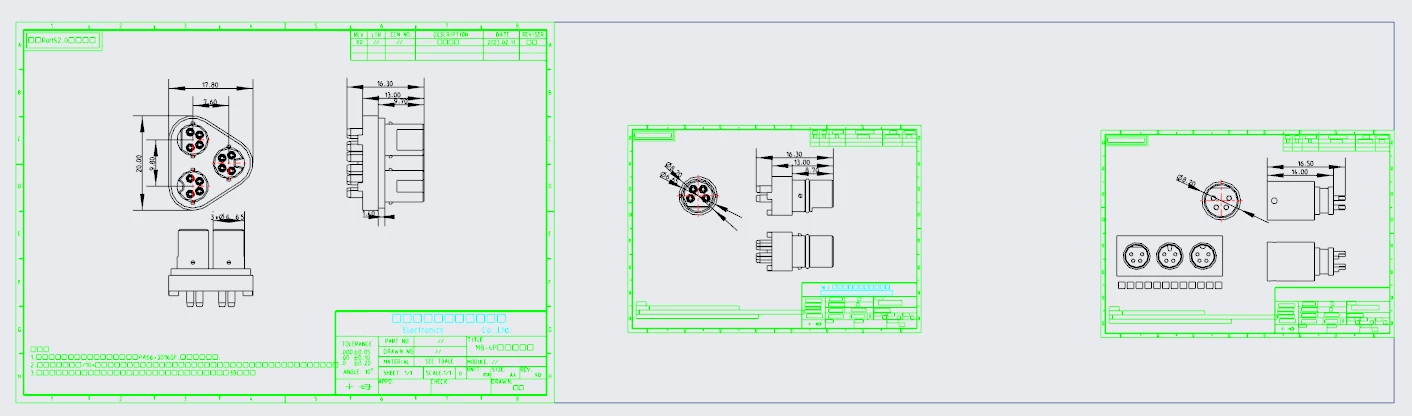

This file consists of one sheet which consists of three drawings itself (this is strange itself I think). See attached screenshot "File_View". There you can also see the strange reprensentation of the drawing itself and esoecially its figures and characters.



When I safe this .dwg file as an .pdf file / drawing (even with 600pdi) its not usable in my view - see atachement "Drawing_pdf". I zoomed in for the screenshots. The font and the size is the main problem I guess. The smaller drawings are even worse - see "Drawing_pdf_4" as an example.



CREO tells me, the size is 291.147 by 80.4057 (I guess "mm"). I dont know how to slice the drawing up into different sheets and how to change the size if its even necessary.

The drawing comes from CN. If you want import or export info or any other info - please tell me.



Can someone help me or does someone have a clue what the problem is?



Thanks in advance.

Best answer by MartinHanak
@Model_1975 wrote:

Hello Martin,



I only have creo - I dont have autodesk autoCAD...Is there any better way to import an .dwg file into creo than to just open (import) it?



Thanks.

Hi,

you did not explain why you need to convert DWG to PDF. I guess someone needs to view DWG. In such case user can try Creo View Express or Autodesk DWG TrueView.

2 replies

StephenW
StephenW23-Emerald III
23-Emerald III
March 15, 2023

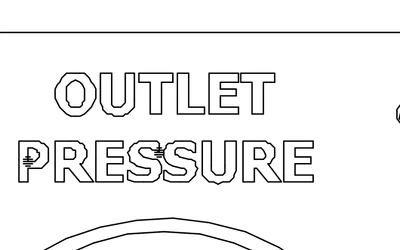

We see the lineweight issue. If you use adobe acrobat, open the pdf, then use CTRL+5 to turn off line weights

If you use other PDF view software, you'll need to google how to turn of line weight or thickness in that software.















M
Model_197512-AmethystAuthor
12-Amethyst
March 15, 2023

Hello Stephen,



thank you four your hint - it was the solution. I dont use Adobe acrobat but "CTRL+5" worked fine in the PDF-Editor which I use. The devs probably took over the shortcut.



When I change the lineweight and save the document it seems that it saves the adjustment. Unfortunately only for me. As soon as I send this pdf-drawing via mail to an colleague the old "thick" lineweight is back (for him)... I dont want to add everytime the hint to adjust the lineweight in the documents so I have to find an solution for that.



But thanks anyways for this hint.

tbraxton
tbraxton22-Sapphire II
22-Sapphire II
March 15, 2023

To "fix" this on the Creo side you will need to set up the pen tables used when Creo creates plot files (including pdf).



To Create a Pen Table File (ptc.com)

M
MartinHanak24-Ruby III
24-Ruby III
March 15, 2023

Hi,

why you use Creo to import AutoCAD .dwg file and save PDF ? Use AutoCAD.

    M
    Model_197512-AmethystAuthor
    12-Amethyst
    March 15, 2023

    Hello Martin,



    I only have creo - I dont have autodesk autoCAD...Is there any better way to import an .dwg file into creo than to just open (import) it?



    Thanks.

    M
    MartinHanak24-Ruby IIIAnswer
    24-Ruby III
    March 15, 2023
    @Model_1975 wrote:

    Hello Martin,



    I only have creo - I dont have autodesk autoCAD...Is there any better way to import an .dwg file into creo than to just open (import) it?



    Thanks.

    Hi,

    you did not explain why you need to convert DWG to PDF. I guess someone needs to view DWG. In such case user can try Creo View Express or Autodesk DWG TrueView.
