Import image on sketch in order to copy a new profile

  • December 19, 2022
  • 1 reply
  • 865 views

I am using Creo Parametric Release 6.0 and Datecode6.0.5.1

Import image on sketch in order to copy a new profile ( sketch) and create a new geometry

Best answer by tbraxton

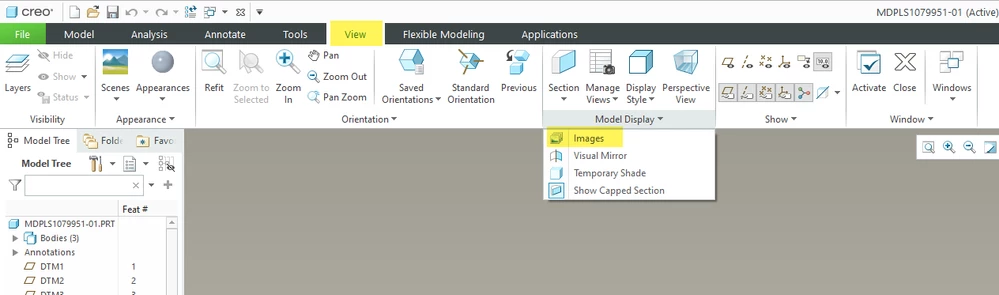

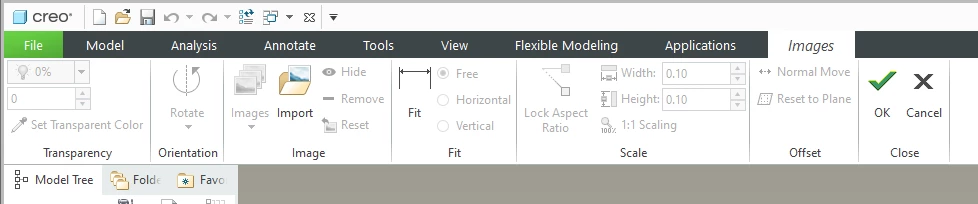

You want to use the trace sketch function. It is now in the view tab, see below. This will allow for the import, scaling, and alignment of images for reference in a part.











1 reply

tbraxton
tbraxton22-Sapphire IIAnswer
22-Sapphire II
December 19, 2022

You want to use the trace sketch function. It is now in the view tab, see below. This will allow for the import, scaling, and alignment of images for reference in a part.
