hello

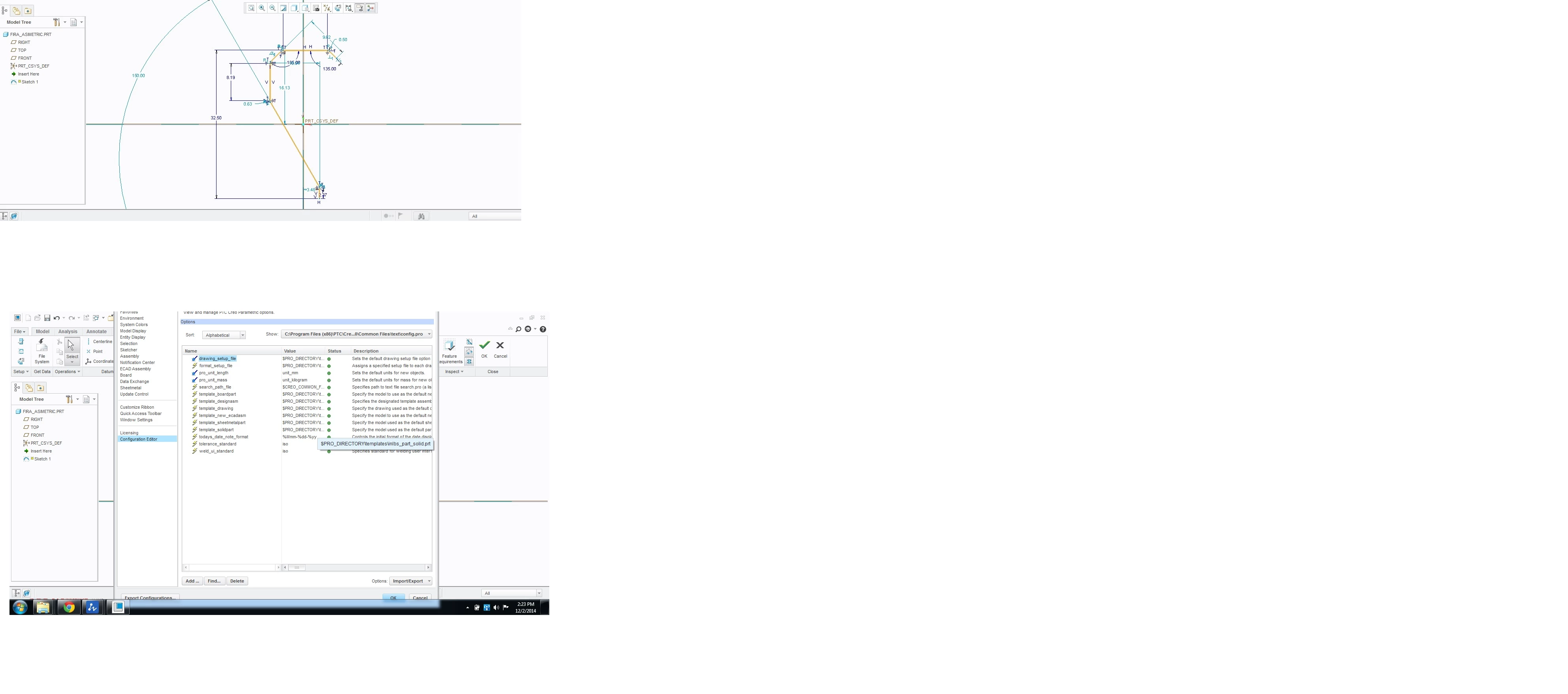

i want to introduce a existent sketch in creo but the dimension is modified after that

what i wrong?

the sketch i want to import is 1:1

the difference is too big

thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by MartinHanak

Bogdan,

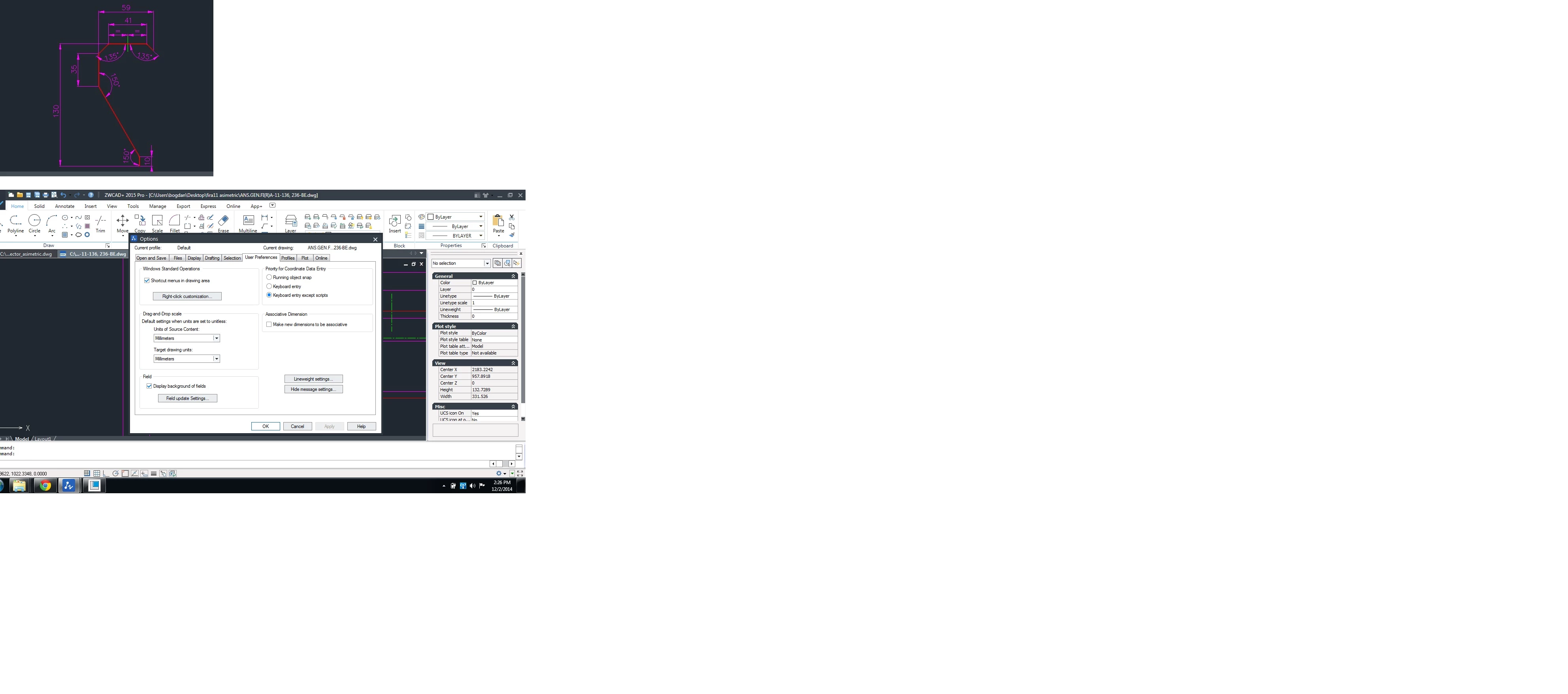

in ZWCAD you created dimension 130 mm. In Creo this dimension has value 32.5.

32.5:130 can be simplified as 1:4.

It seems to me that in ZWCAD you use scale 1:4. Therefore the real distance of entities is 32.5 mm (not 130 mm).

Martin Hanak

3 replies

TomD.inPDX17-Peridot
17-Peridot
December 3, 2014

It would be good to crop your images. They are seriously distorted in this forum.

As for using saved sketches, you want to be sure that they are "self sufficient" with the exception of one x and one y reference. When you open such a sketch, you have the option to set a scale. When you place such a sketch, it also attempts to snap to an X and Y reference if it is near the drag center.

Make sure your sketch is fully constrained to itself and use locked dimensions.

rohit_rajan15-Moonstone
15-Moonstone
December 3, 2014

if your sketch is too complicated try zoom in before you scale..that will not distort the sketch.

MartinHanak24-Ruby IIIAnswer
24-Ruby III
December 3, 2014

Bogdan,

in ZWCAD you created dimension 130 mm. In Creo this dimension has value 32.5.

32.5:130 can be simplified as 1:4.

It seems to me that in ZWCAD you use scale 1:4. Therefore the real distance of entities is 32.5 mm (not 130 mm).

Martin Hanak
